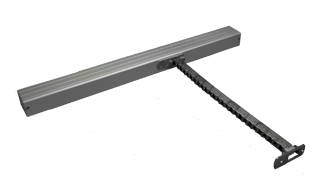

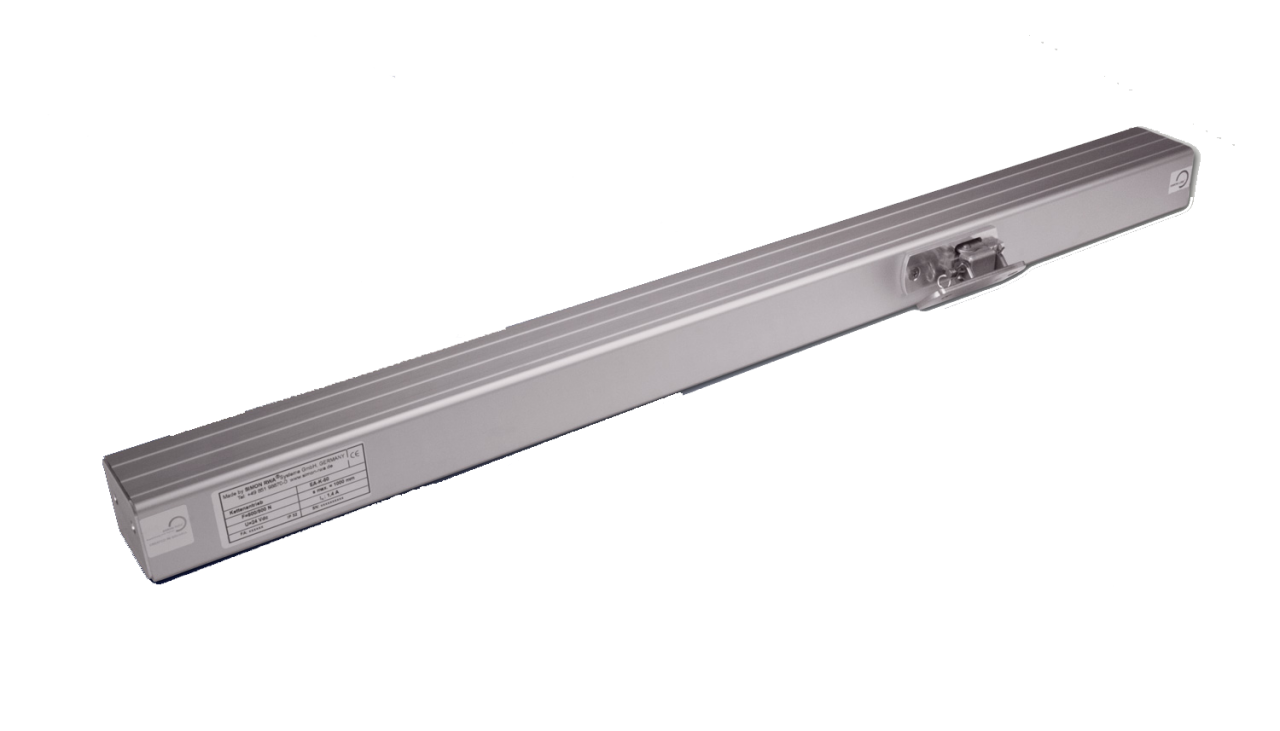

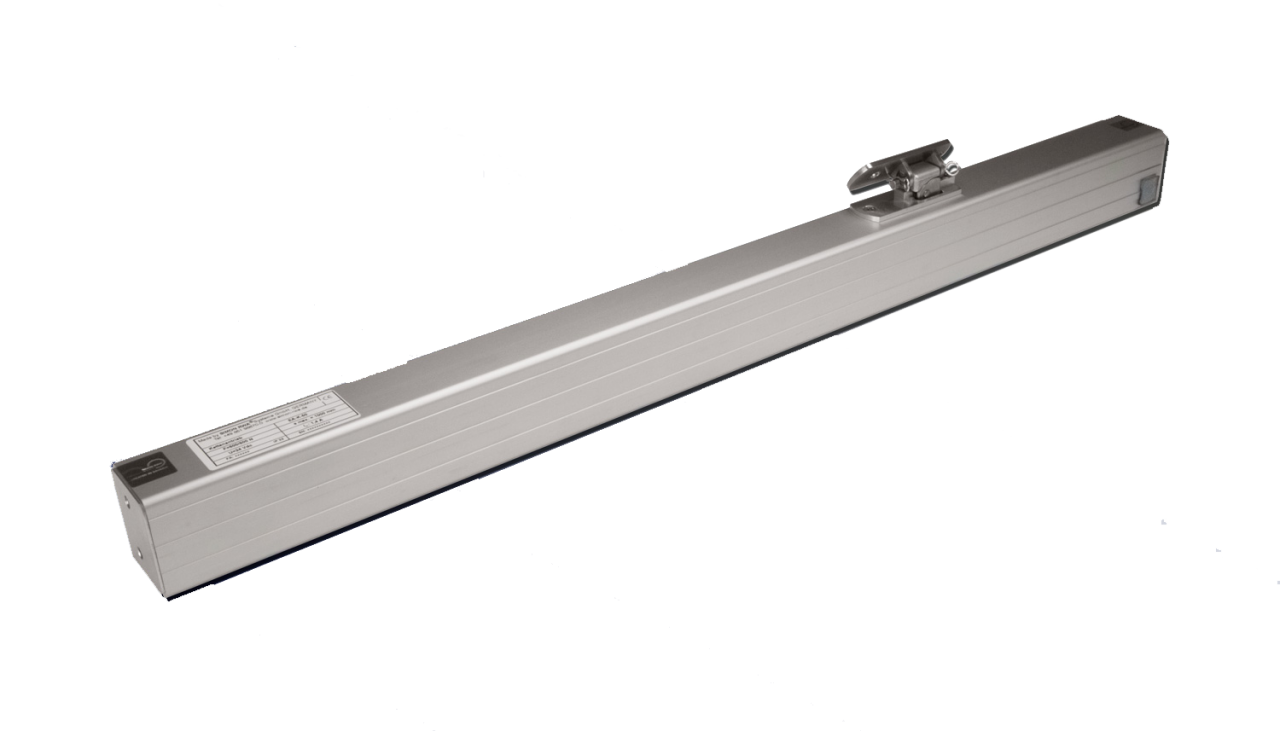

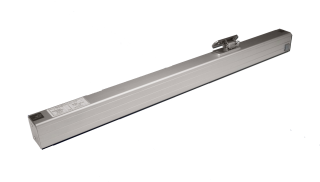

Chain actuator EA-K-65 - current SHE actuator with more power

Power, elegance and functionality: Our new EA-K-65 chain actuator can now be ordered. The chain actuator has more power to open and close flaps with a force of 650 N. Almost silently, the actuator reliably opens and closes windows and flaps.
As usual, this chain actuator is equipped with our software analysis tool SIMON Link. Ie. Parameterization of stroke and force as well as analysis and maintenance of the actuator is possible on site. For ease of installation, the upper console drilling distance has been changed to 43 mm.

• modern look due to ribbed housing
• fits into existing overall optics
• 650 N tensile and compressive force (maximum pressure up to 600 mm)
• ideal for use in residential and commercial areas
• equipped with the latest microprocessor technology
• fast parameterization via SimonLink software analysis tool (stroke and force)
• Evaluation of the running cycles via SimonLink
• availabe as tandem version
• flexible bracket system
• Soft Close (gentle closing from 75 mm before reaching the end position "CLOSED")
• soft start
• extreme smooth running
• scope of delivery: 1 upper bracket K-K50-OK
