| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 3 A / 6 A |
The SHEV compact control panel is a compact device designed according to European specifications. The control panel contains a primary and secondary power supply as well as the entire control and regulation technology for operating 24 Volt DC actuators for building openings, e.g. windows and smoke exhaust flaps. The compact control panel controls the actuators in case of fire as well as for daily ventilation.
Special ventilation functions (gap ventilation, dead man function, automatic ventilation) are freely and individually programmable for the user. The ventilation function is at the same time a daily function control of the smoke exhaust system. The manual or automatic triggering of the smoke and heat exhaust system activates positioning motors or fittings by pole reversal, which release the openings in the wall or roof area intended for smoke exhaust.
Compact control panel for SHEV and NSHEV
The SHEV compact control panel is specially designed for SHEV use in stairwells and for NSHEV and offers all necessary connections for release devices (push buttons, smoke detector, fire alarm system). Designed for daily ventilation applications, the following components can also be connected: wind/rain detectors, vent buttons, timers and higher-level controls. The connection lines for SHEV buttons (manual control devices), smoke detectors, fire alarm system (FAS) and actuators are monitored.
Emergency power supply for 72 hours
In the event of a power failure, the emergency power supply ensures the function of the smoke and heat ventilation system for at least 72 hours. The SHEV compact central unit is CE certified according to EN 12101-10 and tested according to ISO 21927-9.
Advantages at a glance:
| Matchcode | SHEV |
| Product name | SHEV Compact control unit |
| Features | SHEV VENT |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 3 A / 6 A |
| LED signs | ready, error, smoke exhaust system triggered |
| Environment temperature range | -5 ?C - 40 ?C |
| Housing | Plastic housing / steel-sheet housing RAL 9010 |
| Connections | smoke extraction button: 1 main and 7 secondary SHE-button (type HE-075, HE-0,76), ventilation button (type DT, ST), thermo detector (type TH 70 Ö, TH 4860), smoke detector (type RM-3000, RM-2860), wind/rain detector (type WTS-892, WT-890), potential-free external actuation |
| Plastic housing | ||
| Part no. | Matchcode | |
|---|---|---|

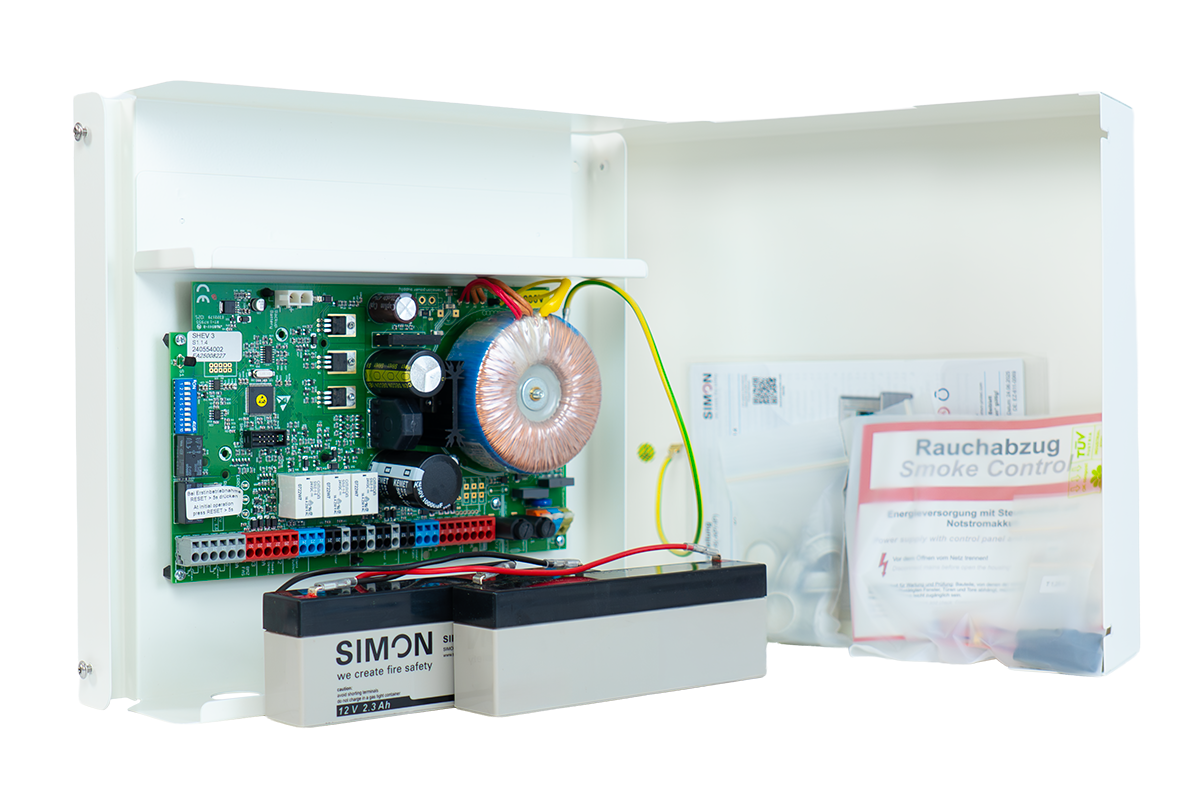

| ST4 3140 | SHEV 3 | |

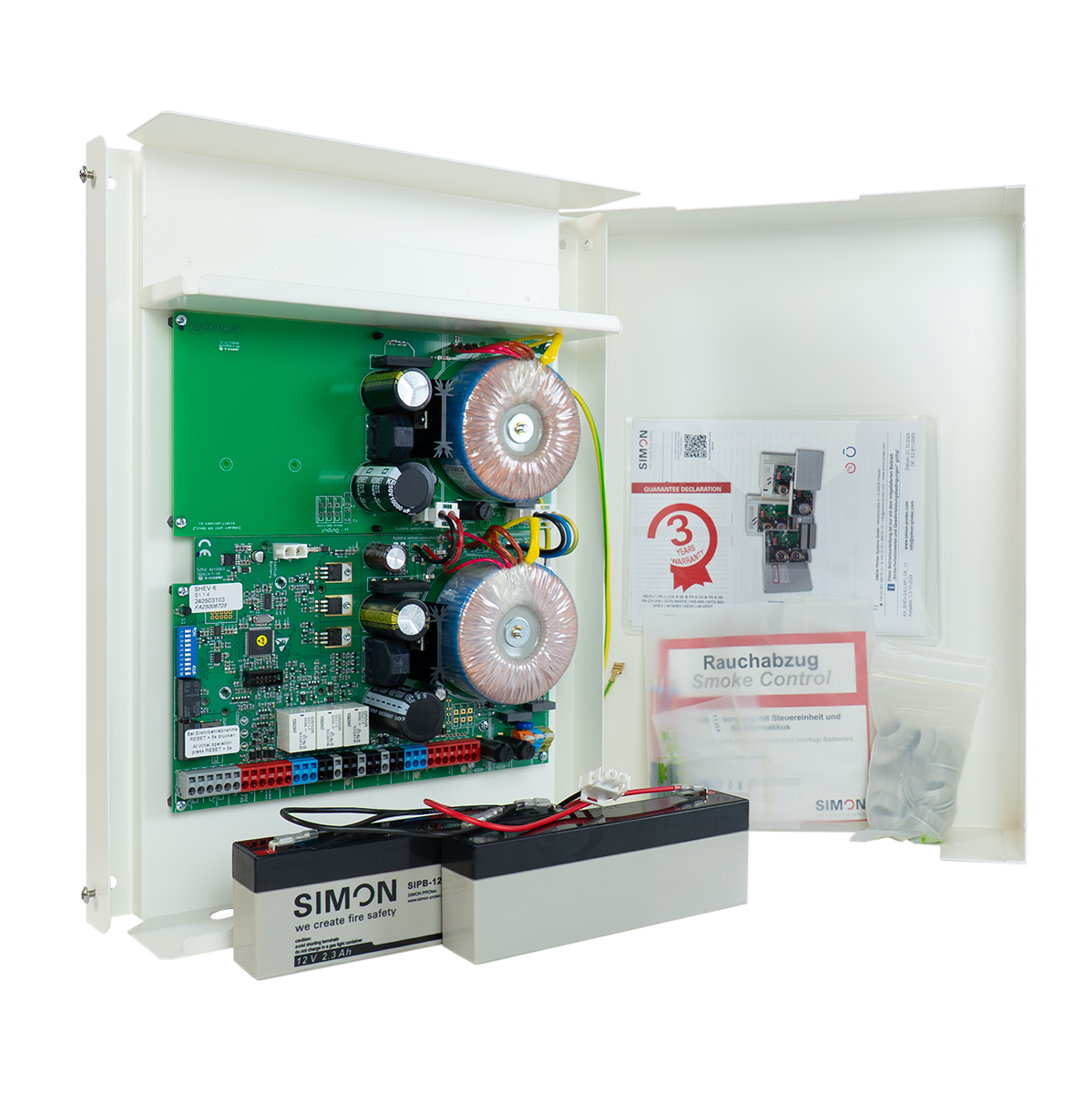

| ST4 3141 | SHEV 6 | |

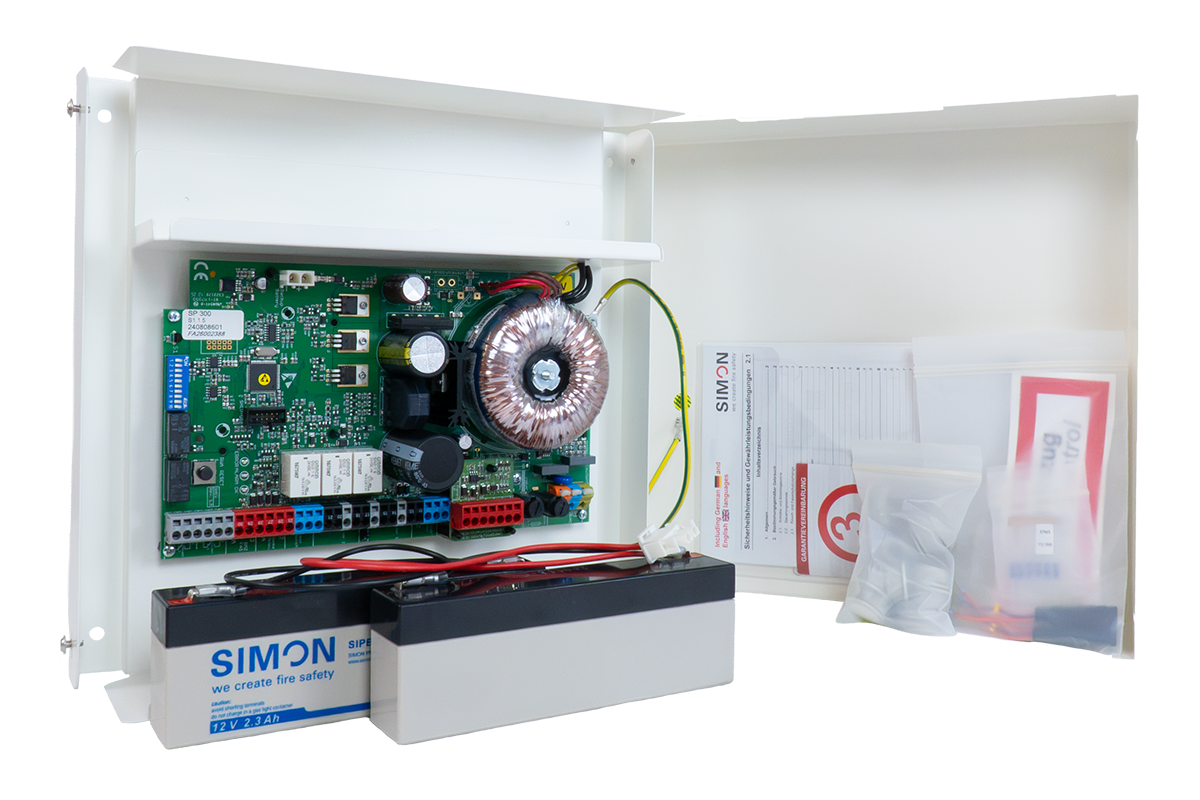

| ST4 3160 | SP-300 | |

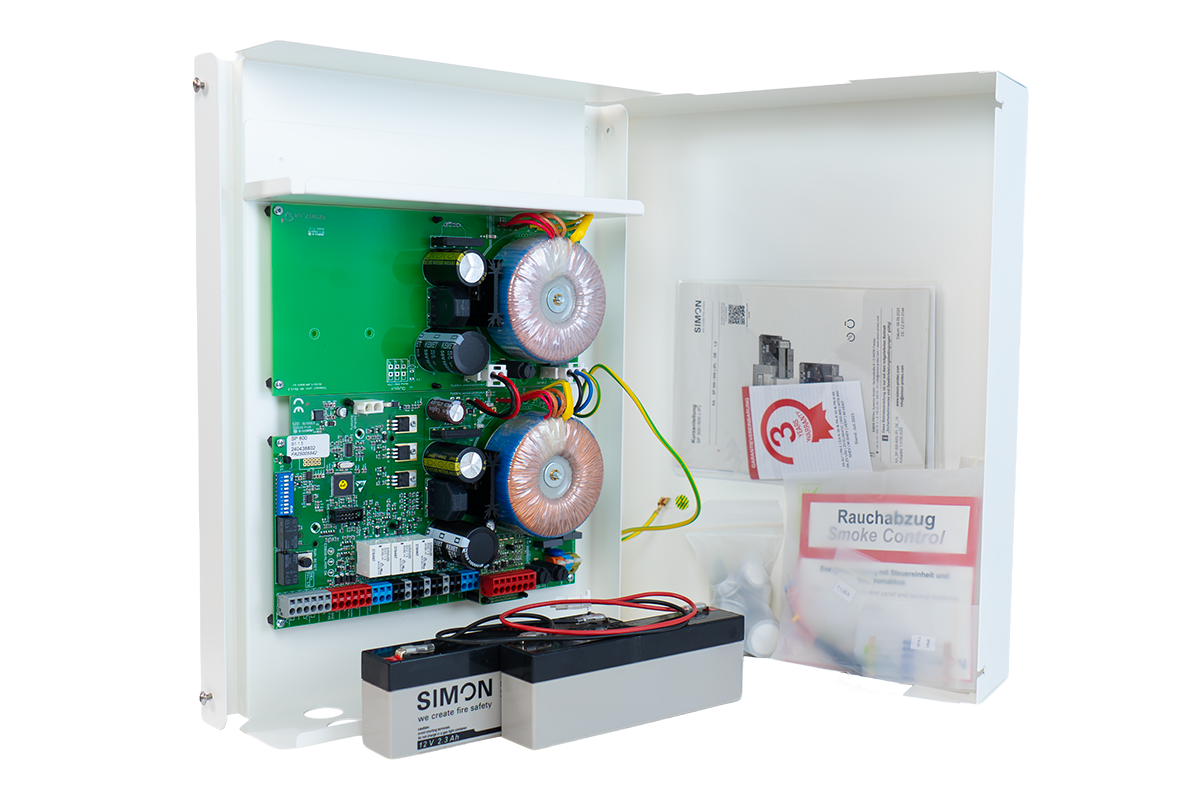

| ST4 3161 | SP-600 | |
| ST4 3166 | SHEV 2 HM | |
| ST4 3168 | SHEV 2 ECO | |
| Steel-sheet housing | ||
| Part no. | Matchcode | |
|---|---|---|
| ST4 3146 | SHEV 3 AP | |
| ST4 3151 | SHEV 6 AP | |
| ST4 3153 | SHEV 602 | |
| ST4 3177 | SP-300-AP | |
| ST4 3191 | SP-600-AP | |

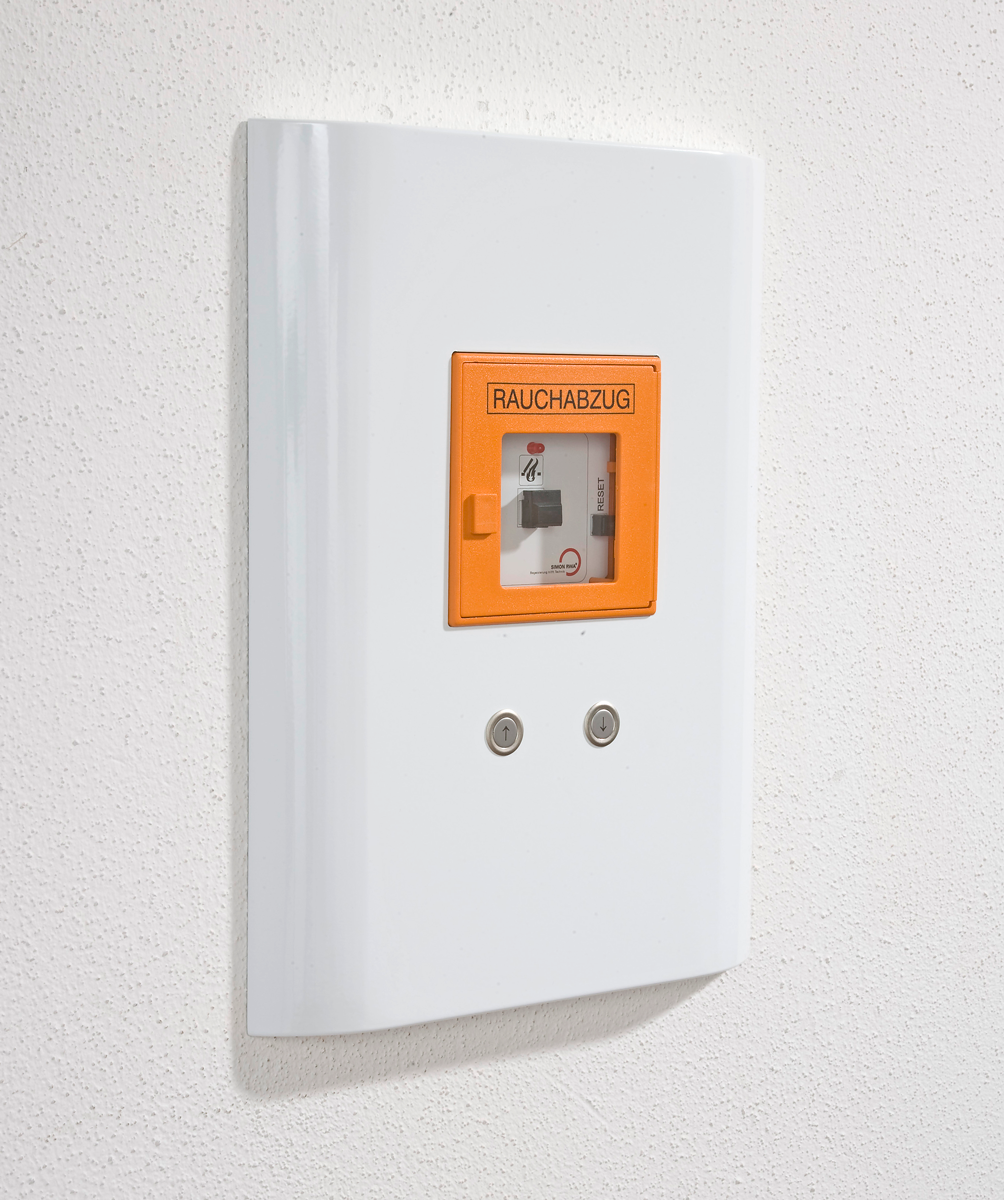

| Integrated push button | ||
| Part no. | Matchcode | |
|---|---|---|
| ST4 3233 | SHEV-3-HE-082 | |
| ST4 3234 | SHEV-3-HE-081 | |
| Part no. | Matchcode | |
|---|---|---|
| ST4 10130 | SHEV-3(6)-Akkupack-2,3Ah | |
| ST4 10131 | SHEV-3-AP-Akkupack-2,3Ah | |
| ST4 33516 | AP-MOUNT |
