| Input voltage | 24 V DC |
| Nominal current | 0.095 A |
| Running speed | 15 s |
| Switch on duration | 30 |

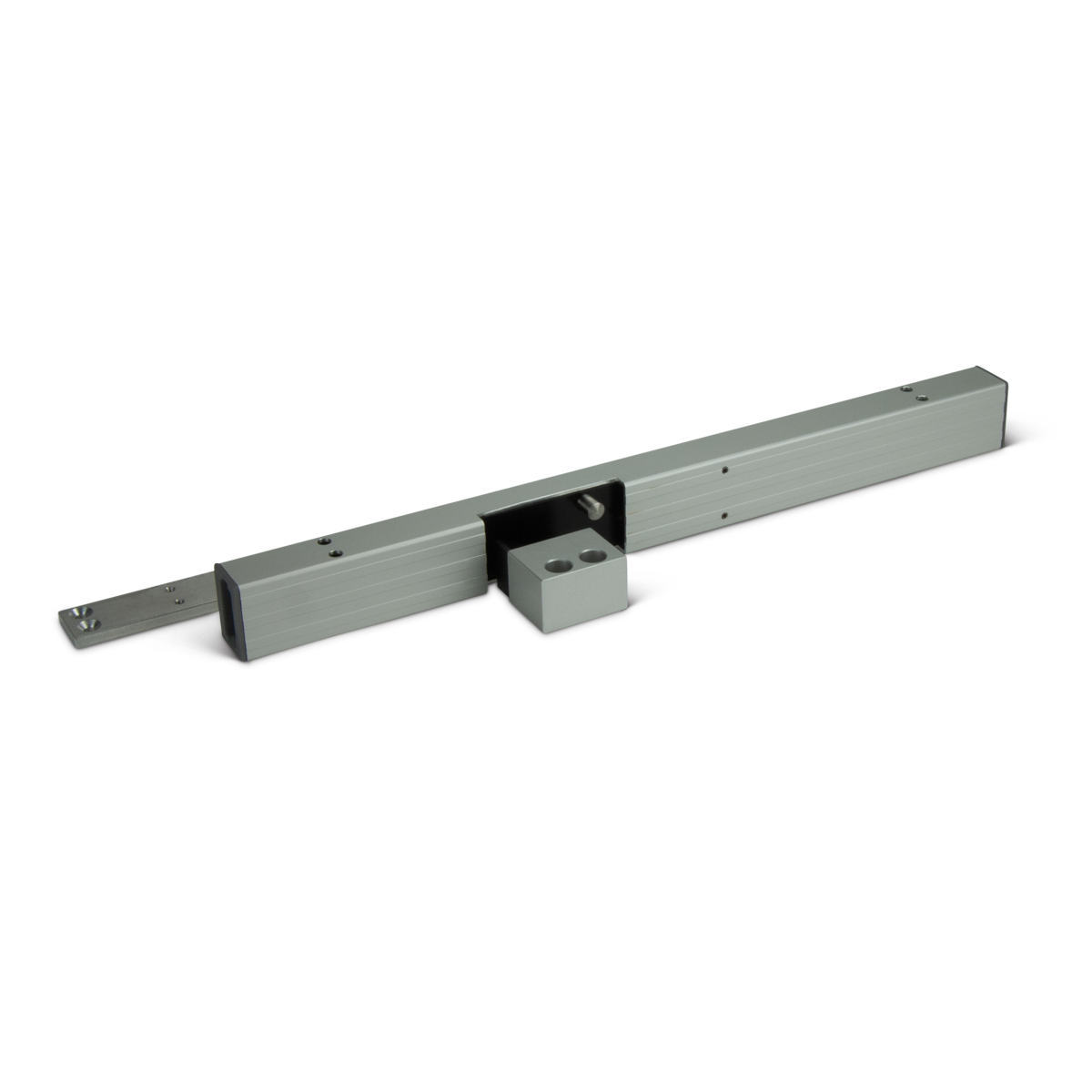

The PA-ZV-UNI is an additional electrical lock to secure large and wide wings with another locking point. In the standard version it can be combined with all electric actuators that provide an F-contact or a potential-free contact in the end position CLOSED. On electromechanical actuators, the follow-up 6 A continue switching while e. g. control two folding arms.
The PA-ZV-UNI is equipped with the SICO-PLUG connector for on-surface installation and cabeling, but has no SICO LINK software interface. Self-adhesive dots are included for mounting the additional mounting plate so that the central locking unit can be pre-positioned on the window without any tools. The mounting plate can be used for inward or outward opening windows. The enlarged locking part also facilitates the assembly. Nevertheless, the PA-ZV-UNI brings smaller dimensions and is less noticeable at the window. Since there is space between lock and locking part at least five millimeters, the setting on the wing is not a problem. In addition, a readjustment is no longer necessary.
In contrast to the predecessor model, the PA-ZV-UNI provides a 30% higher locking force and thus offers even more security. Optically, the additional lock can be seen. The PA-ZV-UNI is housed in a ribbed housing and looks visually appealing.
Advantages of the new PA-ZV-UNI
Advantages of SICO PLUG
| Matchcode | PA-ZV-UNI |
| Product name | Supplementary electric locking PA-ZV-UNI |
| Features | 3 Years warranty SHEV VENT Input 24 VDC N-SHEV approved |
| Input voltage | 24 V DC |
| Nominal current | 0.095 A |
| Ripple | 500 |
| Cut-Off | - integrated electronic overload cut-off - Overload protection: electronic - Max. switching current of all sequence actuators: 6 A - Switching time sequence control: approx. 2 seconds. |
| Running speed | 15 s |
| IP Code | IP40 |
| Switch on duration | 30 |
| Environment temperature range | 0 °C - 75 °C |
| Weight | 0.9 kg |
| Mounting way | fitted |
| Housing | Aluminum E6/EV1, 385 x 25 x 35 mm |
| Connections | SICO PLUG |
 Brochure Window Automation | Brochure Window Automation |
| Catalogue (web) Smoke & Daily Vent | Catalogue (web) Smoke & Daily Vent |
| PA-ZV-UNI Actuator brochure |
| Operating Manual PA-ZV-UNI | Operating Manual for the supplementary electric locking PA-ZV-UNI |
| Certificate PA-ZV-UNI | Declaration of conformity for the supplementary electric locking PA-ZV-UNI |
| Certifictate UKCA_PA-ZV-UNI_ZVK-LOCK_ZV-ELIMATIC | Declaration of conformity for locking device PA-ZV-UNI, ZVK-LOCK, ZV-ELIMATIC |
| Environmental Product Declaration (EPD) | Environmental Product Declaration (EPD) |
| Safety instructions and warranty conditions | Safety instructions and warranty conditions |
