New Fire Curtain Fire PROtec² - E120 EW30 C2

After having offered our fire curtain Fire PROtec for over a decade, we are now entering a new modular era with regard to textile fire protection.

The fire curtain system Fire PROtec² will start a new generation of textile smoke and fire protection. It is just as flexible as the certified smoke and fire protection qualities of the harmonised standard EN 16034.

"To comply with the new European standards of EN 16034 and simultaneously fulfil the growing demands of the market by using our experience which we have acquired over decades for a new development – this was our ultimate priority regarding this enormous project. I think the result is impressive!"

Martin Weber, SIMON PROtec's General Manager

We incorporated the expertise of our product development as well as the production with regard to smoke ventilation actuators into the new FSV2 (project name). Thus, the production of serial and project parts could be significantly enhanced. Compared to its precursor, the new system complies with the requirements of EN 16034 from the very beginning. As of now, it can be labelled with a declaration of performance CE in the direct and extended area of application. At the same time, this is your proof of usability for integrating the system in your building project.

For the time being, the Fire PROtec² will be offered in two versions:

• Fire PROtec² E120-C2 for preventing flash overs for more than 120 Minuten. (Wall and Reveal mounting)
• Fire PROtec² EW30-C2 with limited heat radiation for 30 Minuten. (Only wall mounting on the fire-facing side)

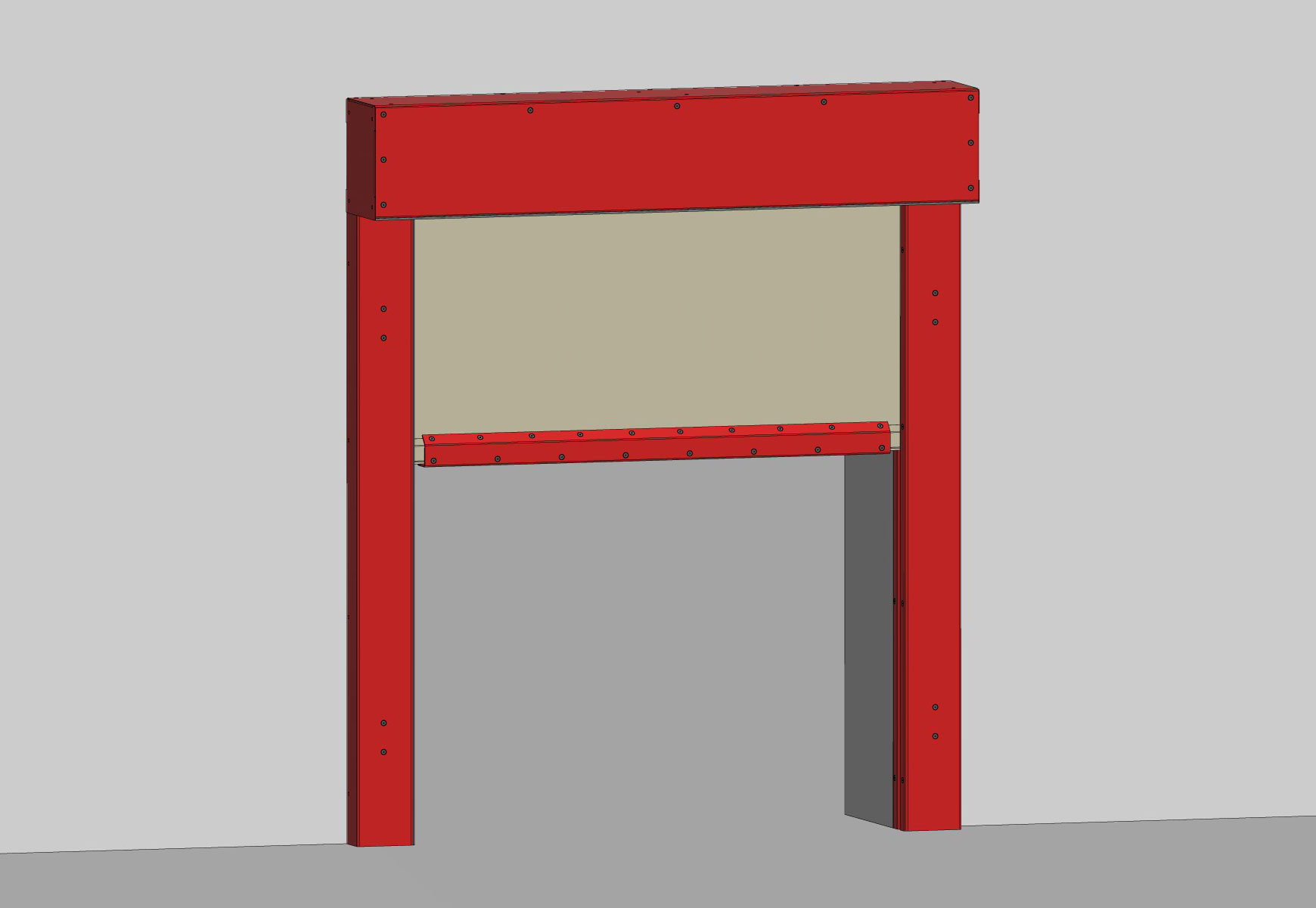

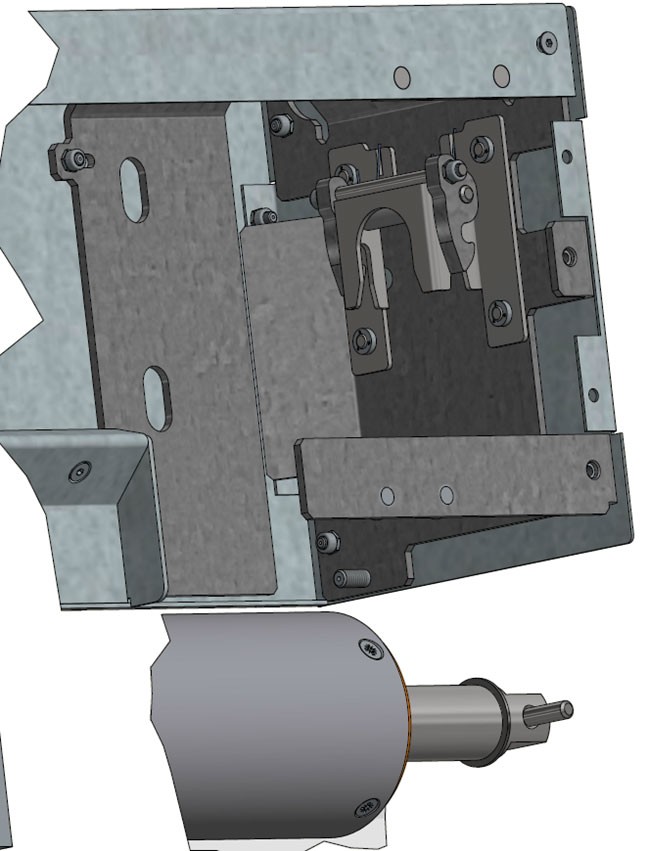

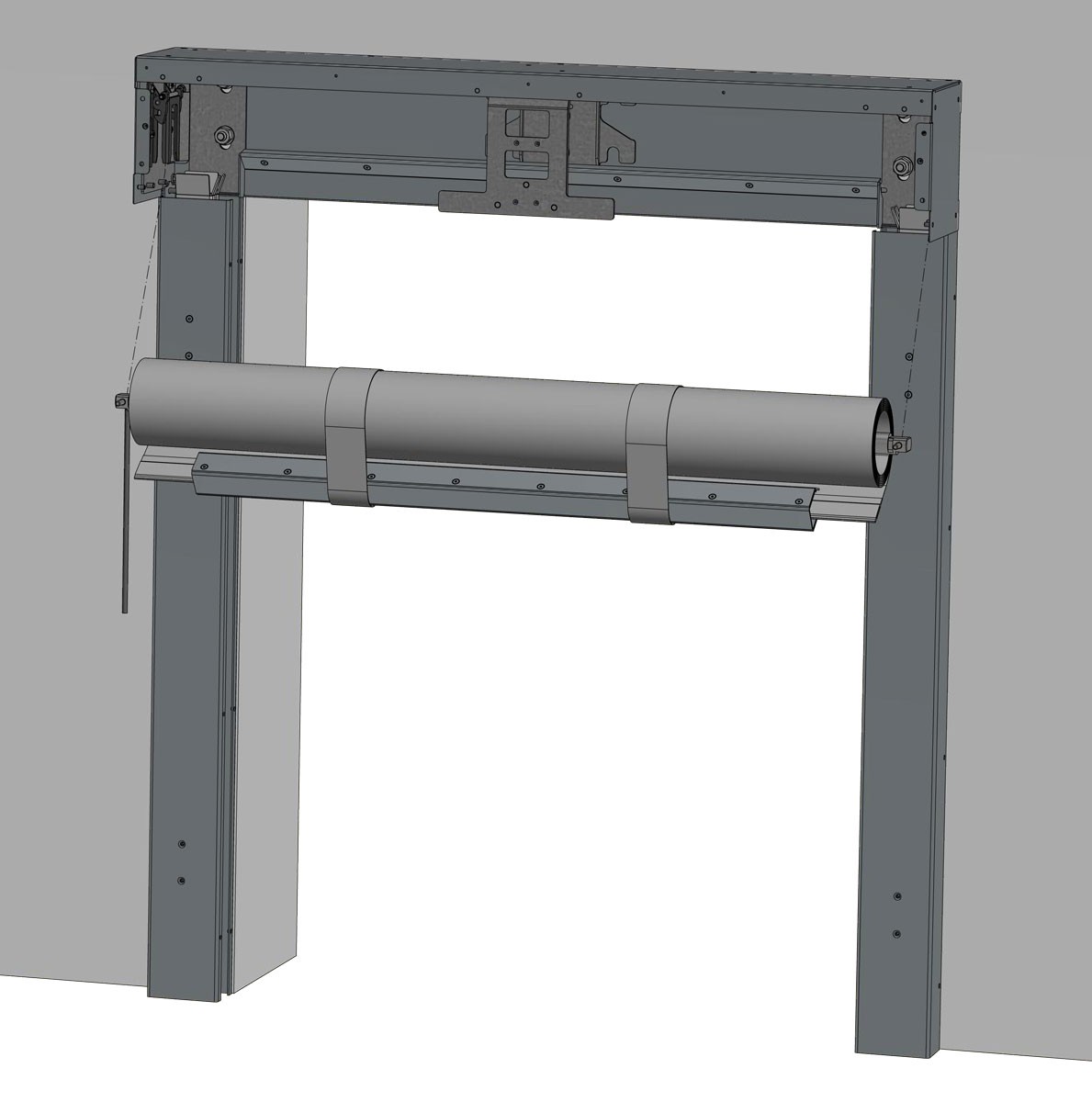

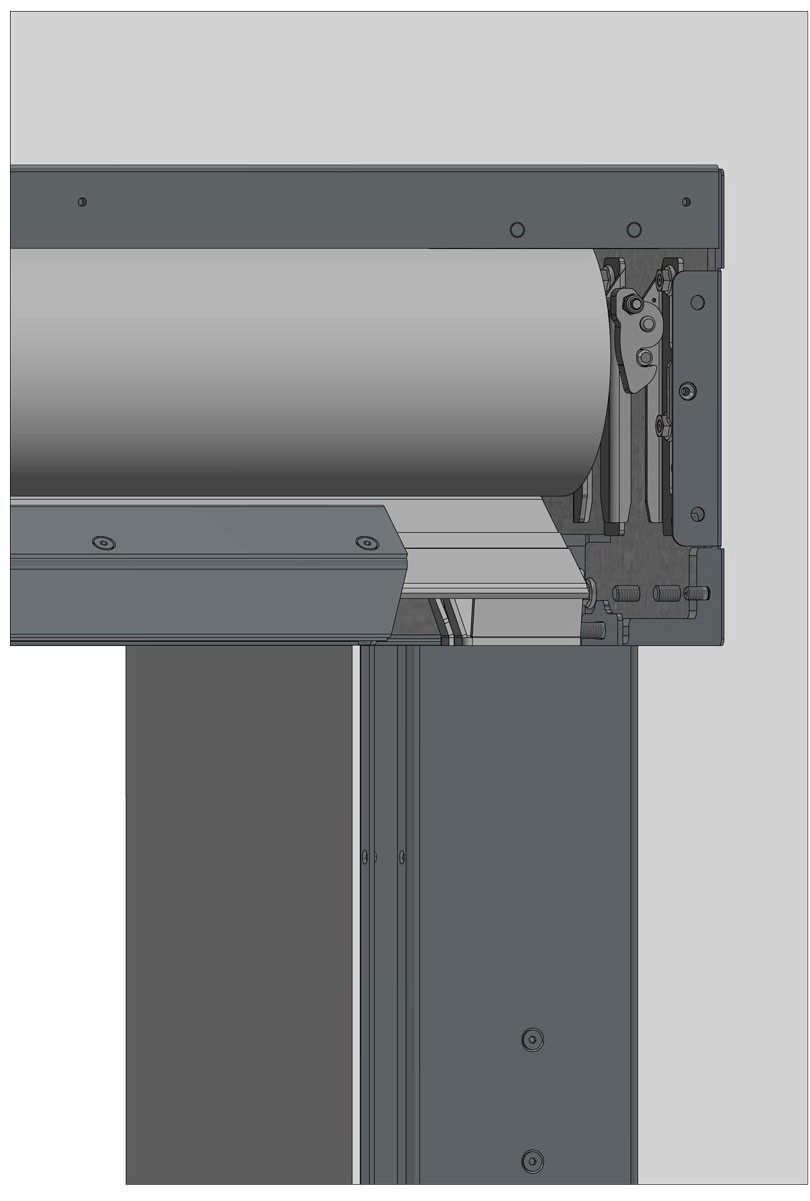

Developing the Fire PROtec², the main focus was to keep the headboxes small (150x182 mm with a curtain size of 3 x 3 m and 180x212 for 6 x 4.9 m) and the visual quality high. The curtain will be delivered as a construction kit and can be mounted and installed easily which saves both time and money. Especially the "snap-in" mechanism considerably facilitates the installation of the pre-fabricated roller unit. As for the control units, SIMON PROtec offers two possibilities (with and without emergency power, + emergency open) with an approved locking panel RZ-24.

Do you have a current project and wish to implement it by using textile fire protection? SIMON PROtec will be happy to support you from the very beginning until the installation. We look forward to hearing from you.
