Natural smoke ventilators (N-SHEV) according EN 12101-2 are set up in many variants. This number of possibilities are listed in such a product passport which is required for the manufacturer of the windows. Beside the product passport for SCHÜCO profiles we offer as of late such catalogue also for WICONA profiles.

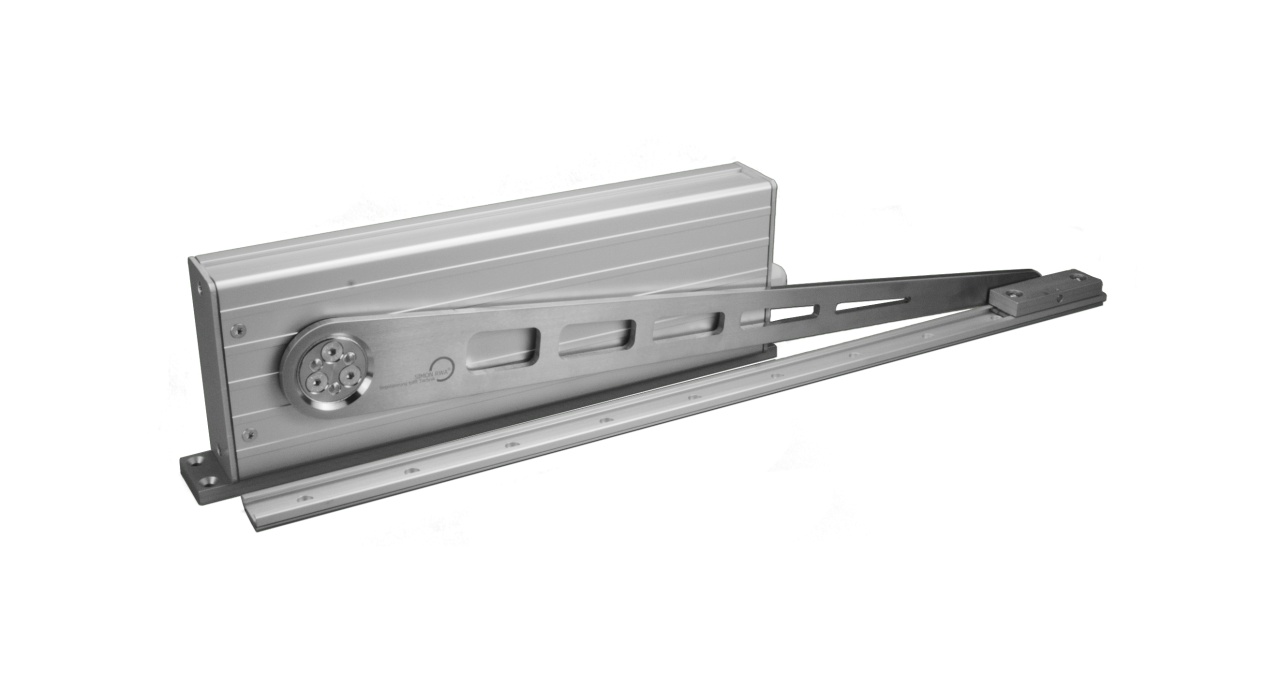

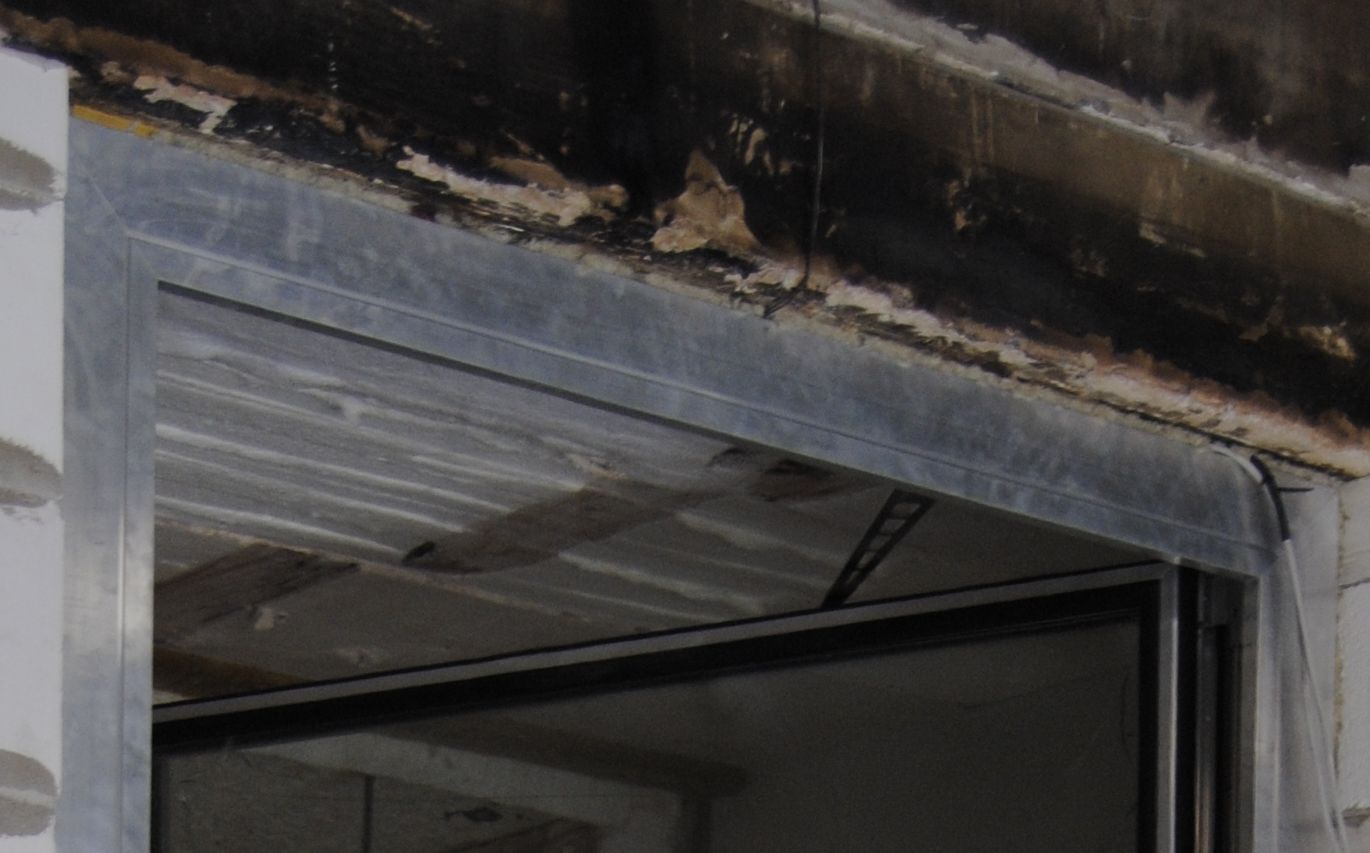

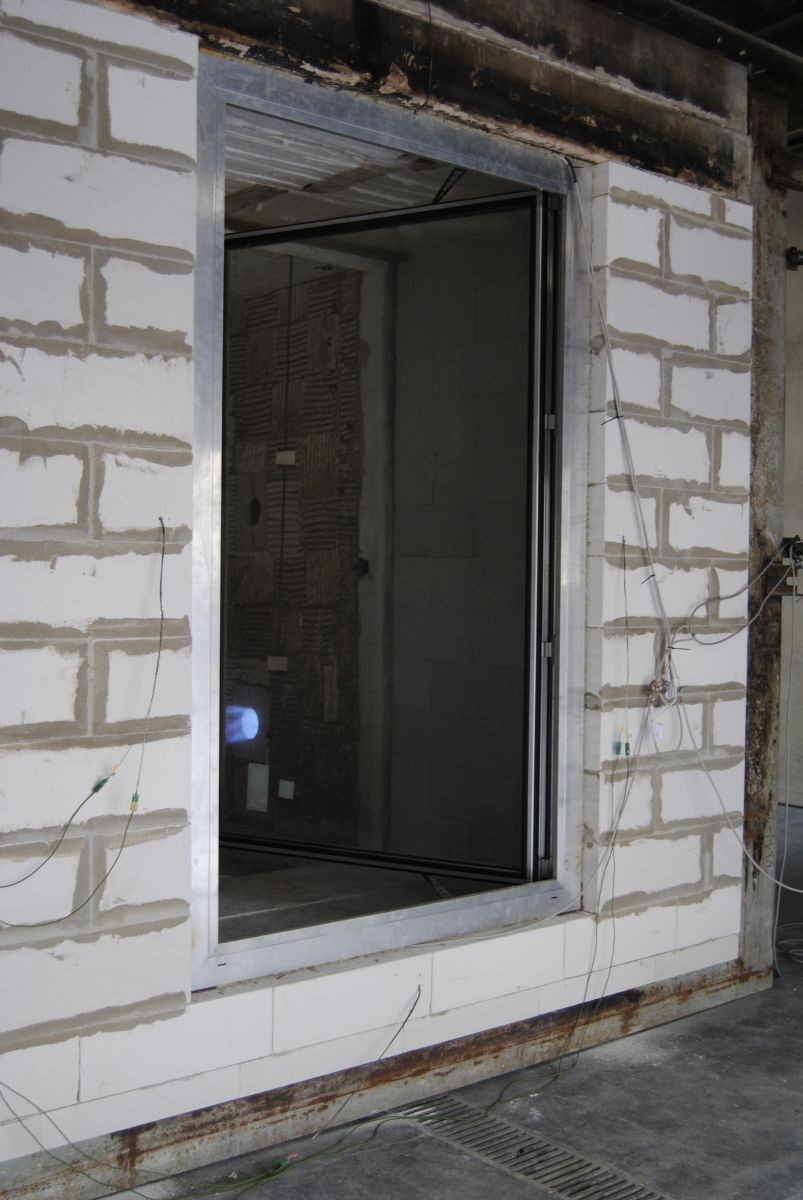

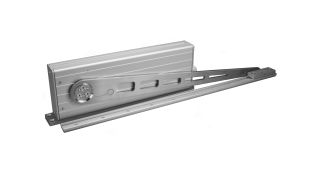

We are happy to report an extension of this product passport. The certificaton tests for the N-SHEV of Folding Arm² EA-KL²-DF together with the locking unit ZV-ELIMATIC has been passed successfully. The test was together with a side hung window of the WICONA WICLINE 95 series with a size of WxH 1610 x 2610 mm. With that results SIMON PROtec can offer side hung windows for smoke ventilation with an opening angle bigger than 90°. We achieve with it maximum values for aerodynamic.

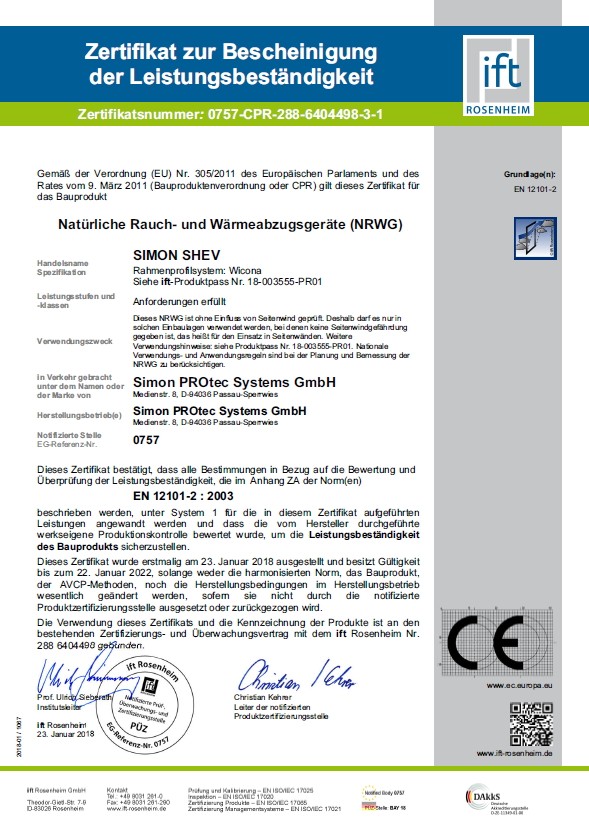

Results of the test: B300 | RE 1000 (+ 10,000 cycles for daily ventilation) | WL 1000
Get to know more about the product passport and the variants for N-SHEV by contacting our sales team.
