Here you find the brackets for mounting the chain actuators on inward and outward opening wings. Also, the mounting material for mounting the brackets is listed here.
| Matchcode | Zubehör Kettenantrieb |
| Product name | Accessories chain actuator |
| Features | SHEV VENT |
| Part no. | Matchcode | |
|---|---|---|
| K2 2201 | K-K20-OK-SB | |
| K2 2202 | K-K20-OK-DL | |
| K2 2203 | K-K20-HK | |

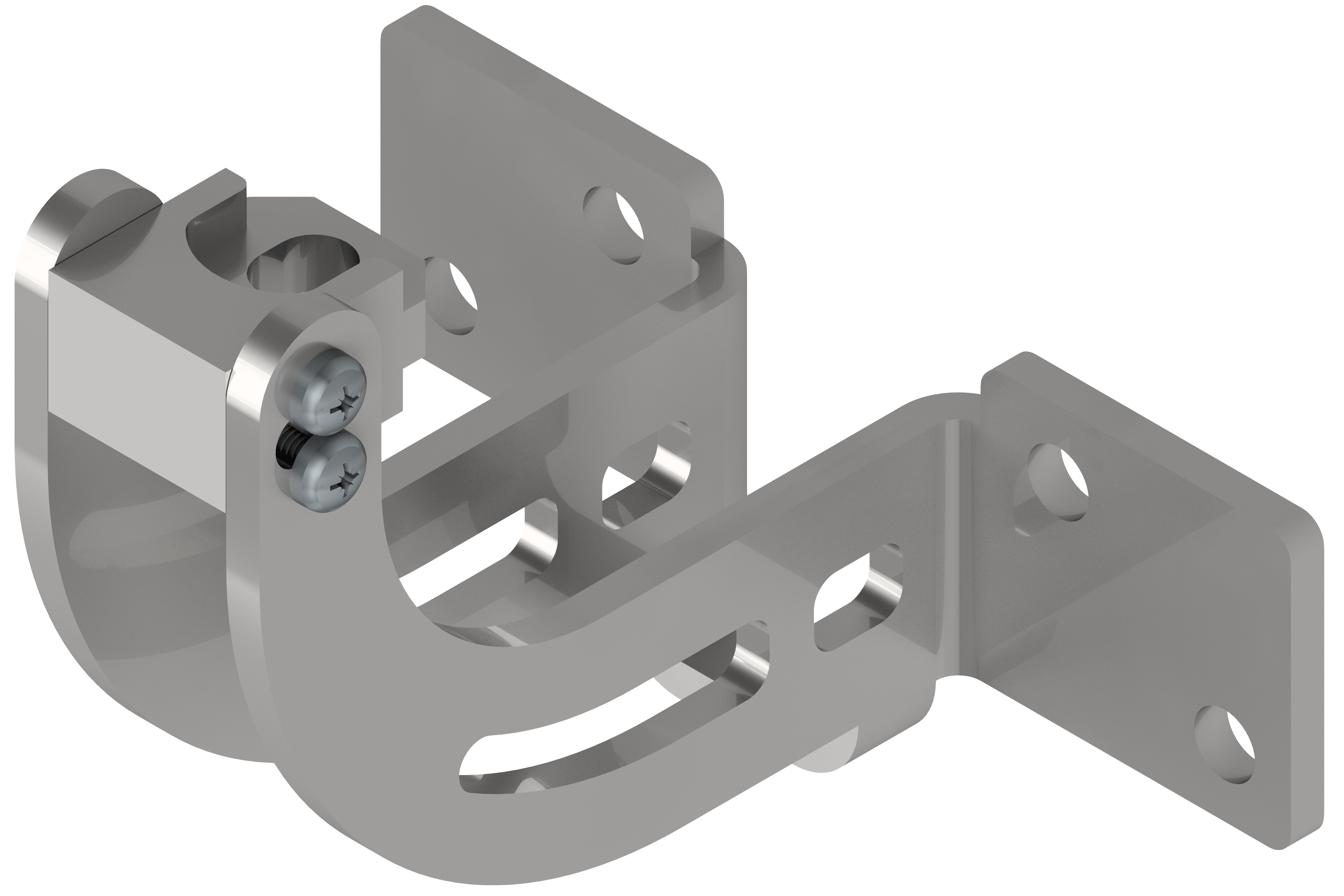

| K2 2204 | K-K20-AKI-SB | |

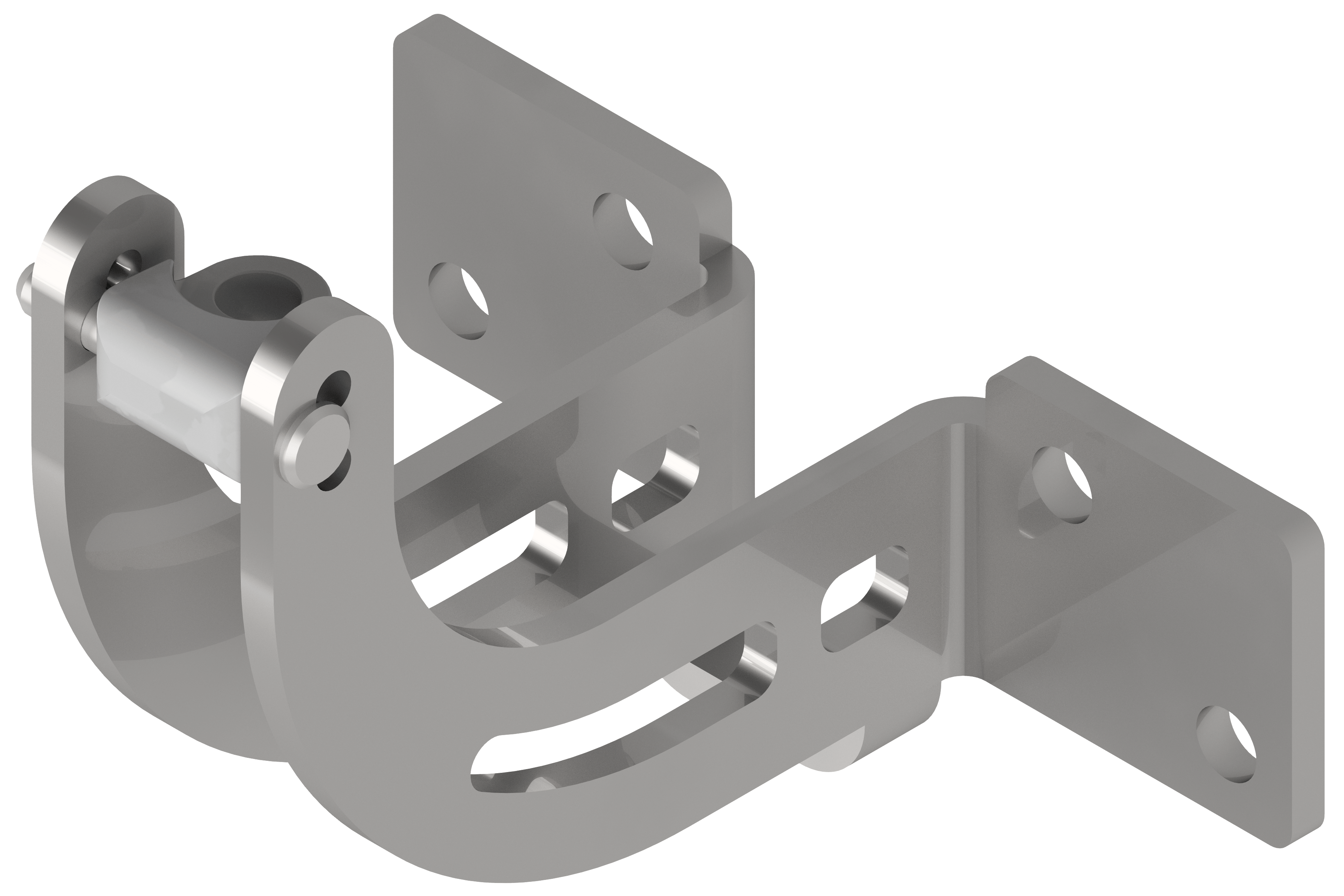

| K2 2205 | K-K20-AKI-DL | |
| K2 2206 | K-K20-S-SB | |
| K2 2207 | K-K20-S-DL | |
| K2 5107 | K-K30-ZB | |
| K2 5108 | K-K30-AKI-R | |
| Accessories EA(230)-K-30 / EA(230)-K-50 / EA-K-65 | ||
| Part no. | Matchcode | |
|---|---|---|
| K2 5089 | K-K50-OK | |
| K2 5106 | K-K-OK-SK | |
| Accessories EA(230)-K-30 | ||
| Part no. | Matchcode | |
|---|---|---|
| K2 5097 | K-K30-A | |
| K2 5098 | K-K30-K | |
| K2 5104 | K-K30-FLEX | |
| K2 5105 | K-K30-AKI | |
| Accessories EA(230)-K-50 | ||
| Part no. | Matchcode | |
|---|---|---|
| K2 5088 | K-K50-SKI | |

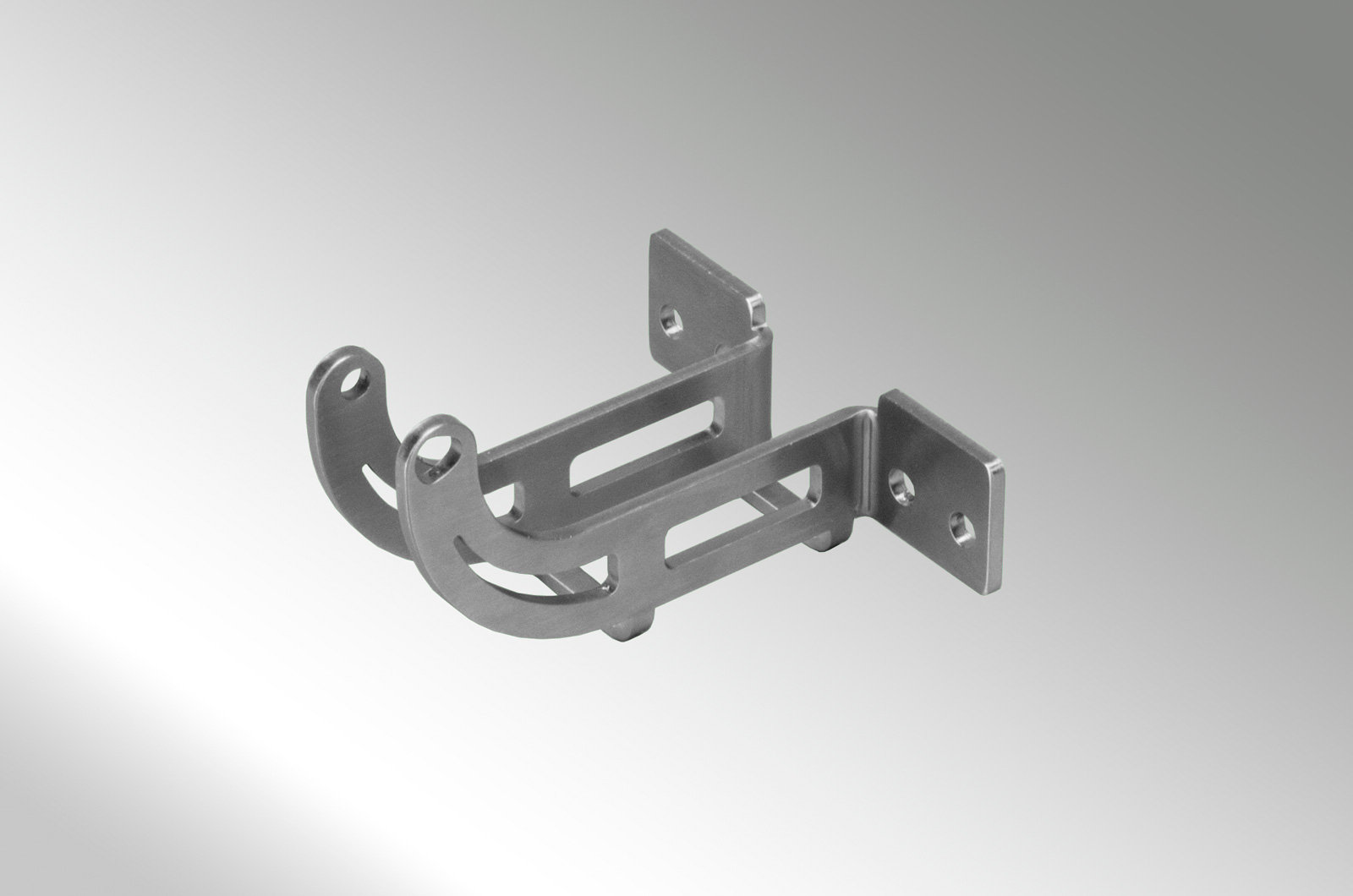

| K2 5090 | K-K50-AKI | |

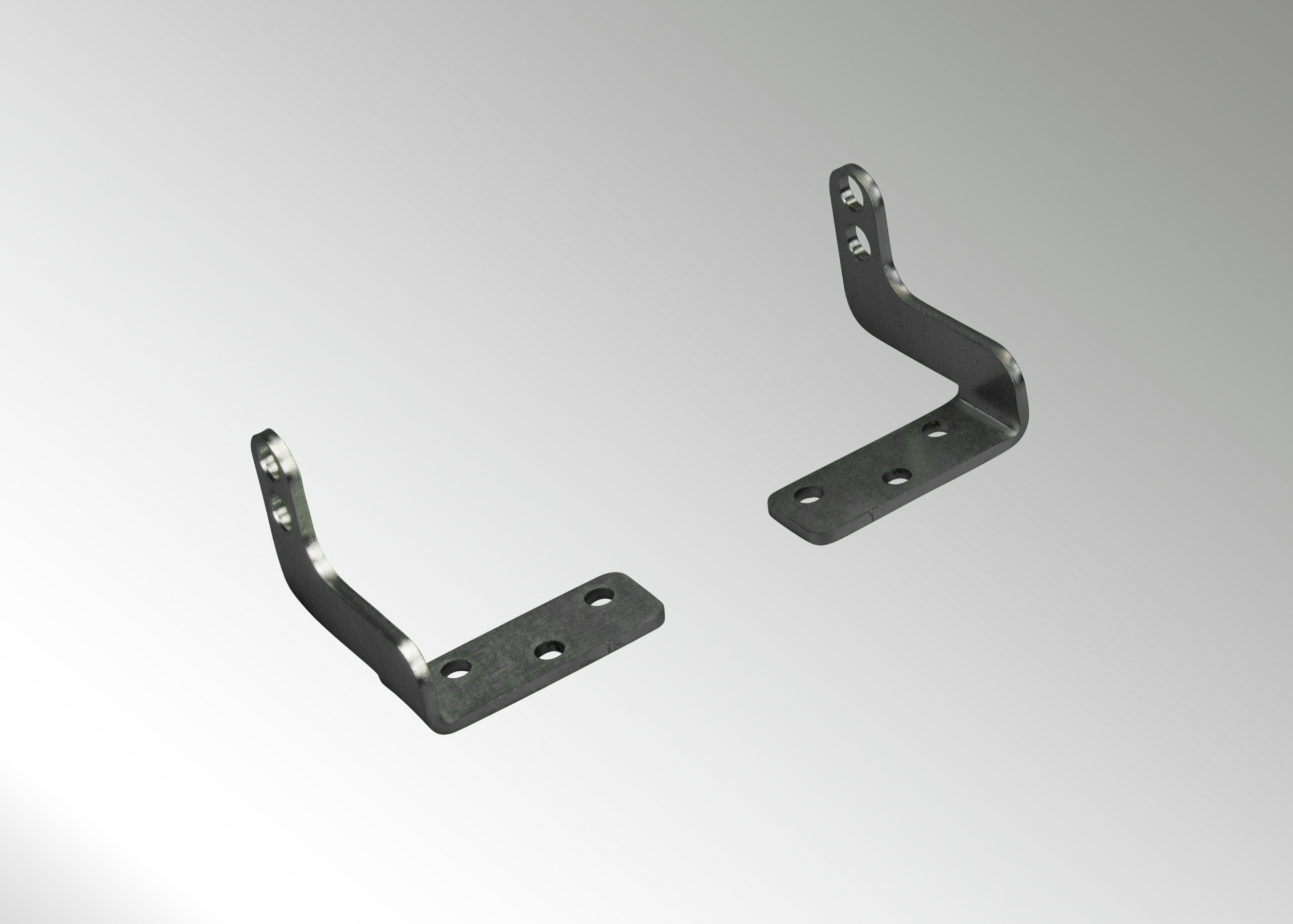

| K2 5092 | K-K50-A | |
| K2 5093 | K-K50-K | |
| K2 5094 | K-K50-FLEX | |
 Brochure Window Automation | Brochure Window Automation |
| Brochure_EA-K-30_chain brochure | Brochure for chain actuator EA-K-30 |
| Catalogue (web) Smoke & Daily Vent | Catalogue (web) Smoke & Daily Vent |
| K-30 - Secondary closing edge mounting | Drawbridge - additional bracket for chain actuator K-30 for mounting on the secondary closing edge |
| technical details_K-K30-FLEX_10 | Technical details for chain actuator K-K30-FLEX, Flex bracket bottom hung wing |
| Environmental Product Declaration (EPD) | Environmental Product Declaration (EPD) |
