| Input voltage | 24 V DC |
| Nominal current | 1.0 A, 1.1 A |
| Stroke lengths | 181 mm, 281 mm, 481 mm, 731 mm |
| Max. Pull & Push Force | 500 N, 750 N |
| Running speed | 7.7 mm/s |
| IP Code | IP20 |
| Switch on duration | 30 |

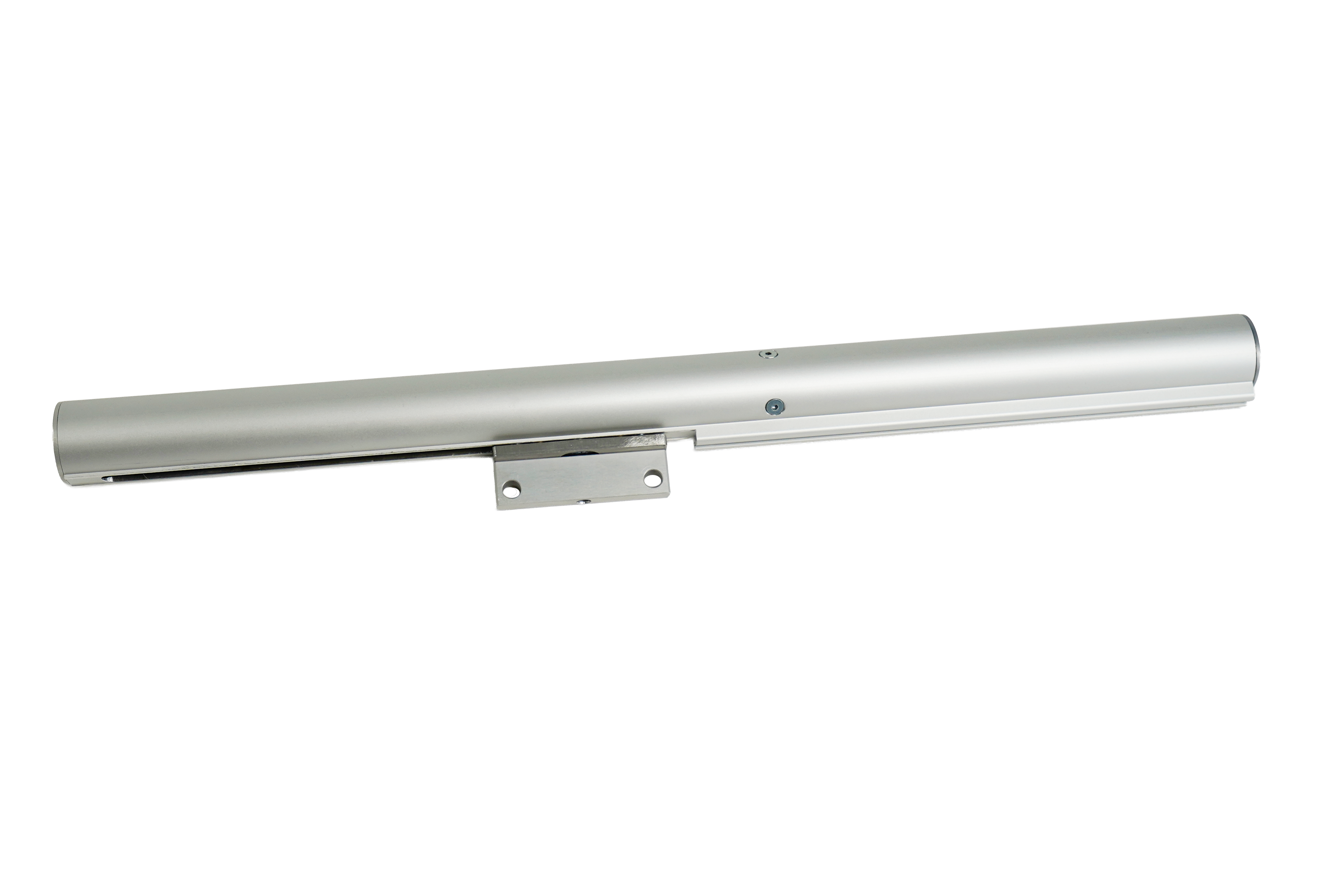

The PA-LS slit actuator combines proven opening kinematics via opening angles with innovative SICO technology. It offers 60° opening within the reveal and an opening option over 140°. Thanks to its patented movement mechanism, the SHEV drive is the perfect drive for electrically operating inward and outward opening sashes. Even with short stroke lengths, large opening widths can be achieved on SHEV windows and doors.
The slot actuator is particularly well suited for use on large turn and tilt sashes. With a force of 500 or 750 N, the smoke and heat actuator opens and closes reliably. Optionally, the actuator can be combined with an additional electrical locking type ZV-UNI - more safety on the object. Thanks to the integrated electronic overload cut-off, the actuator shuts off in the event of an overload.
Easily parameterize and synchronize your actuators
Actuators of the PA series can be parameterized and synchronized both quickly and easily using SICO Link software.
Your benefits at a glance:
| Matchcode | PA-S |
| Product name | Slit actuator PA-LS |
| Features | 3 Years warranty SICO Synchro SHEV VENT Input 24 VDC N-SHEV approved |
| Input voltage | 24 V DC |
| Nominal current | 1.0 A, 1.1 A |
| Stroke lengths | 181 mm, 281 mm, 481 mm, 731 mm |
| Max. Pull & Push Force | 500 N, 750 N |
| Cut-Off | integrated electronic overload cut-off and potential-free contact, electronic limit cut-off, integrated safety cut-off, up to 4 actuators switchable in parallel |
| Running speed | 7.7 mm/s |
| IP Code | IP20 |
| Switch on duration | 30 |
| Environment temperature range | -5 °C - 75 °C |
| Weight | approx. 3 kg |
| Mounting way | fitted |
| Housing | persistent aluminium special section tube, anodized E6/EV1 with integrated fixing point for flexible bracket system, length: 354 mm + stroke (1000 mm at 731 mm stroke) |
| Connections | SICO PLUG connection. Excluding connection cable / set. |
| Inwards opening Slit actuator PA-LS, inwards opening | ||
| Part no. | Matchcode | |
|---|---|---|
| M2 2461 | PA-LS-50/200 | |
| M2 2461 S | PA-LS-50/200-S | |
| M2 2462 | PA-LS-50/300 | |
| M2 2462 S | PA-LS-50/300-S | |
| M2 2463 | PA-LS-50/500 | |
| M2 2463 S | PA-LS-50/500-S | |
| M2 2464 | PA-LS-50/750 | |
| M2 2464 S | PA-LS-50/750-S | |
| M2 2471 | PA-LS-75/200 | |
| M2 2471 S | PA-LS-75/200-S | |
| M2 2472 | PA-LS-75/300 | |
| M2 2472 S | PA-LS-75/300-S | |
| M2 2473 | PA-LS-75/500 | |
| M2 2473 S | PA-LS-75/500-S | |
| M2 2474 | PA-LS-75/750 | |
| M2 2474 S | PA-LS-75/750-S | |
| Outwards opening Slit actuator PA-LSA, outwards opening | ||
| Part no. | Matchcode | |
|---|---|---|
| M2 2461 A | PA-LSA-50/200 | |
| M2 2461 S A | PA-LSA-50/200-S | |
| M2 2462 A | PA-LSA-50/300 | |
| M2 2462 S A | PA-LSA-50/300-S | |
| M2 2463 A | PA-LSA-50/500 | |
| M2 2463 S A | PA-LSA-50/500-S | |
| M2 2471 A | PA-LSA-75/200 | |
| M2 2471 S A | PA-LSA-75/200-S | |
| M2 2472 A | PA-LSA-75/300 | |
| M2 2472 S A | PA-LSA-75/300-S | |
| M2 2473 A | PA-LSA-75/500 | |
| M2 2473 S A | PA-LSA-75/500-S | |
