| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 3 A / 6 A |

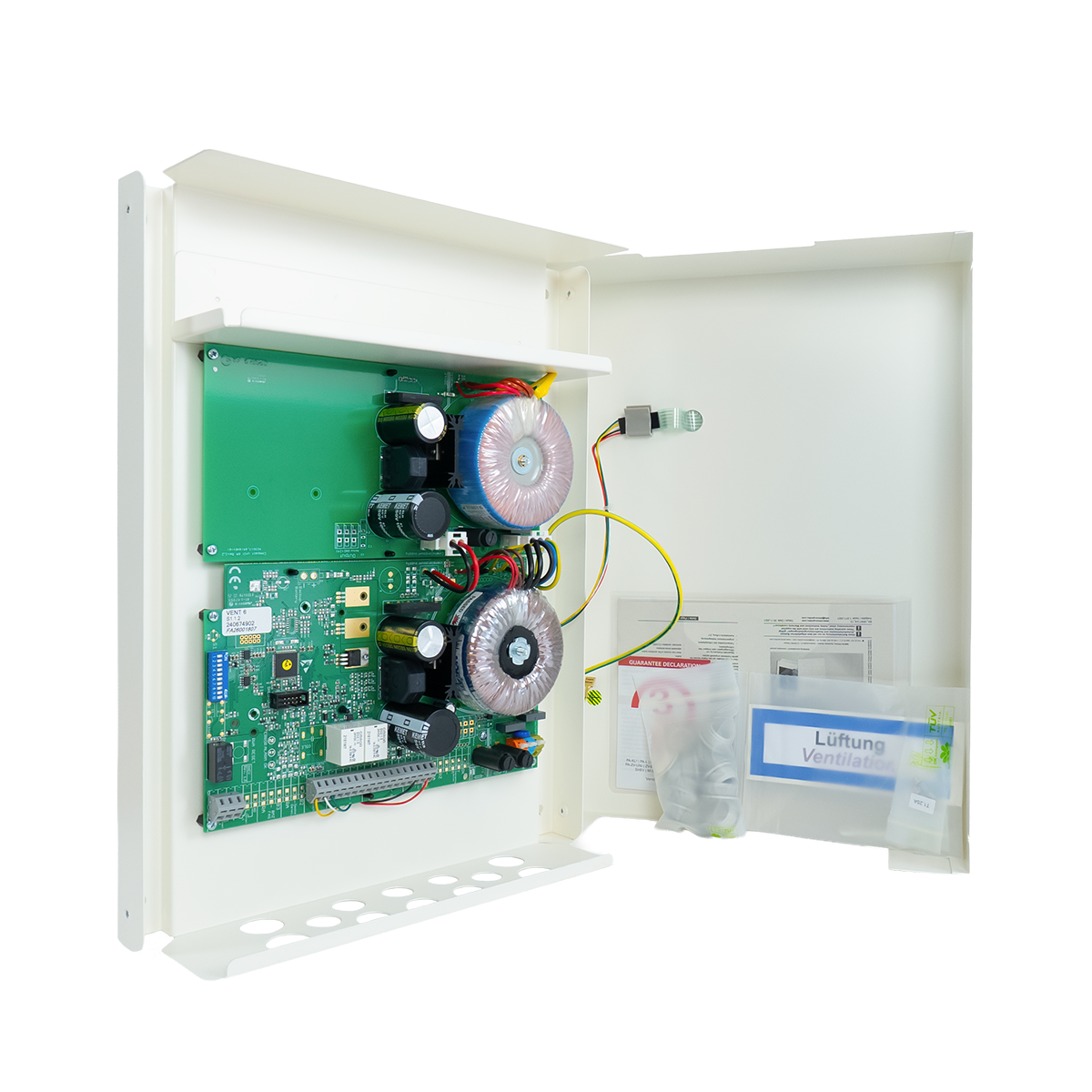

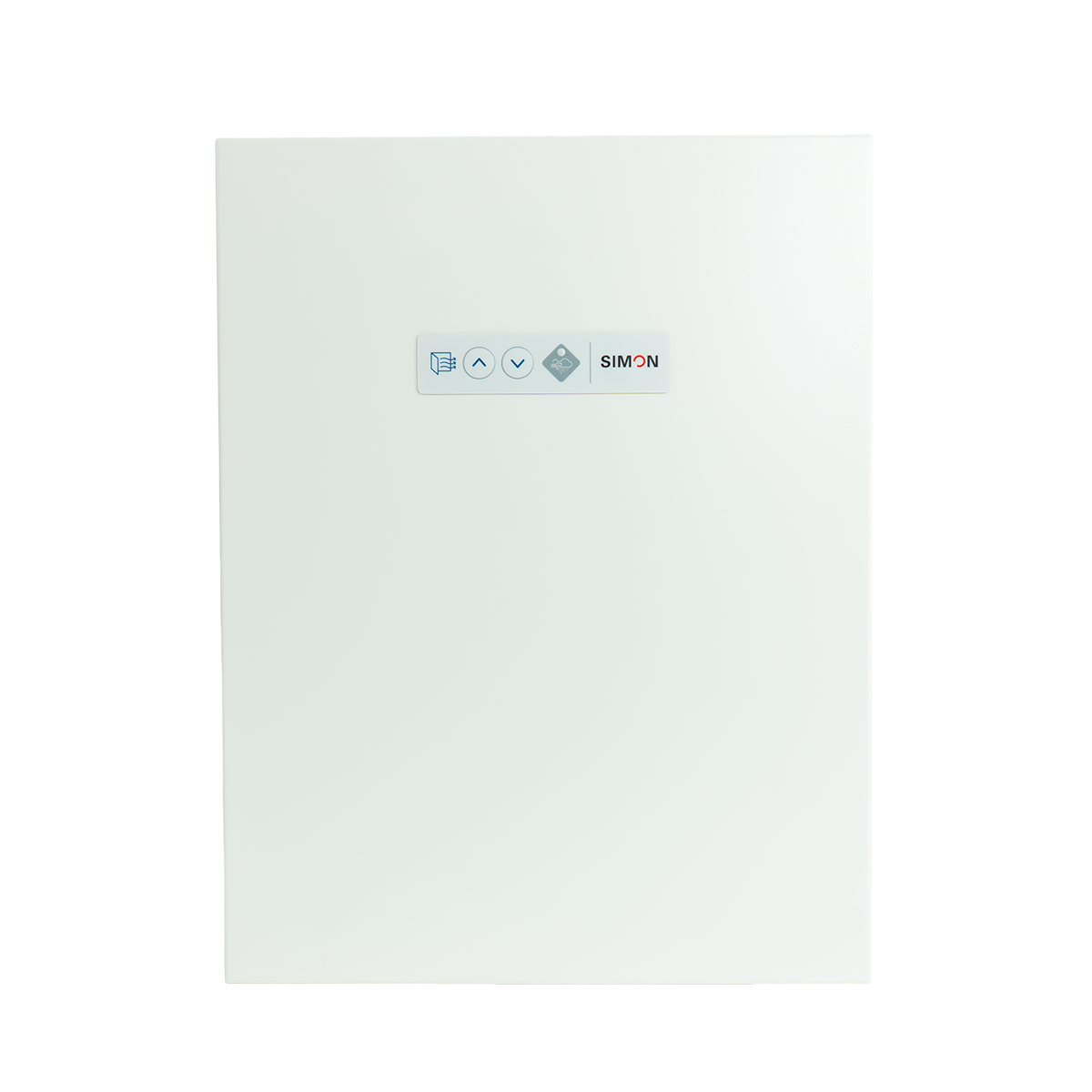

With the VENT-3/6 control unit, the ventilation in the building can be ideally adjusted. Since the control panel can be operated via the integrated membrane keyboard, accessories are not necessary. Optionally, the control system can be extended by external components. This allows an additional connection of wind detectors, rain detectors, thermostats and other ventilation buttons as an option. To what extent the control is automated can be determined by the customer.
Advantages at a glance:
| Matchcode | VENT-3/6 |
| Product name | VENT-3/6 Ventilation control unit |
| Features | Simon LInk VENT |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 3 A / 6 A |
| IP Code | IP20 |
| Switch on duration | 30 |
| Environment temperature range | -5 ?C - 40 ?C |
| Weight | max. 6.3 kg |
| Housing | sheet steel housing 301 x 323 x 85 mm (WxHxD) in RAL 9010 |
 Brochure compact control unit VENT 3-6 | Brochure compact control unit VENT 3-6 |
| Brochure Control brochure VENT 3-6 | Brochure Control brochure VENT 3-6 |
| Brochure Control Panels | Brochure Control Panels |
| Catalogue (web) Smoke & Daily Vent | Catalogue (web) Smoke & Daily Vent |
| Operating manual VENT 3-6 | Operating manual for compact control unit VENT 3-6 |
| Certificate VENT-3 & VENT-6 | Declaration of conformity for the ventilation control units VENT-3 und VENT-6 |
| Certifictate UKCA_VENT-3-6-61 | Declaration of conformity for daily vent control panel VENT-3, VENT-6, VENT-61 |
| Environmental Product Declaration (EPD) | Environmental Product Declaration (EPD) |
| Safety instructions and warranty conditions | Safety instructions and warranty conditions |
