| Input voltage | 24 V DC |
| Nominal current | 1.0 A |
| Stroke lengths | 18 mm, 36 mm |
| Max. Pull & Push Force | 800 N / 300 N |
| Switch on duration | 30 |
The locking actuator PA-ZV-LOCK is used for locking and unlocking windows with integrated locking stripe and for subsequent control of 24 V DC SICO actuator technology. The locking actuator PA-ZV-LOCK enables an installation integrated into the frame (with lock plate) as well as an installation mounted on the frame (with locking fork). Both brackets move the revolving locking stripe of the window via the roller pins optionally 18 mm or 36 mm (stroke setting via DIP switch 2) in OPEN or CLOSE direction.
The locking device can be mounted on the inside (PA-ZV-LOCK-I) or on the outside (PA-ZV-LOCK-A).
The locking actuator is connected to the master actuator via SICO BUS. The connection is made using a site-provided cable and a four-pin plug. When the PA-ZV-LOCK locking actuator is operated in the OPEN direction, the window is unlocked by the linear movement of the locking strip.
Then the actuator(s) connected via BUS is(are operated to open the window. When the PA-ZV-LOCK locking actuator is operated in the CLOSE direction, the actuator connected via BUS is first operated to close the window. Only after the correct closing is confirmed, the PA-ZV-LOCK locks the window by the linear movement of the locking strip.
| Matchcode | PA-ZV-LOCK |
| Product name | Supplementary electric locking PA-ZV-LOCK |
| Features | SICO SHEV VENT Input 24 VDC |
| Input voltage | 24 V DC |
| Nominal current | 1.0 A |
| Input voltage range | - 15 % / + 15 % |
| Ripple | 500 |
| Stroke lengths | 18 mm, 36 mm |
| Max. Pull & Push Force | 800 N / 300 N |
| Cut-Off | built-in electronic overload cut-off Overload protection: electronic |
| IP Code | IP32 (Type -I) / IP10 (Type -A) |
| Switch on duration | 30 |
| Environment temperature range | -5 °C - +70 °C |
| Weight | 0.47 kg |
| Mounting way | fitted integrated |
| Housing | Aluminium |
| Connections | 4-pin plug without connection cable |
| Part no. | Matchcode | |
|---|---|---|

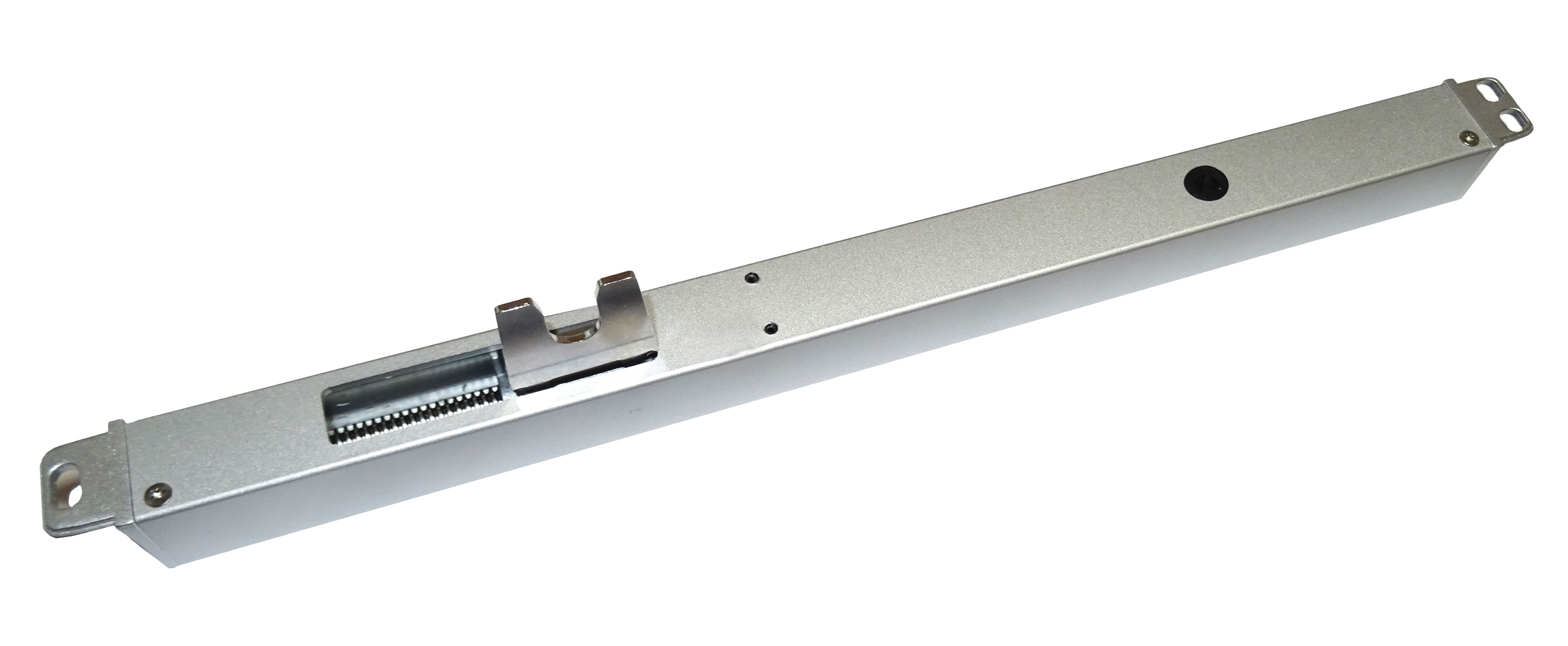

| B5 6221 | PA-ZV-LOCK-A | |

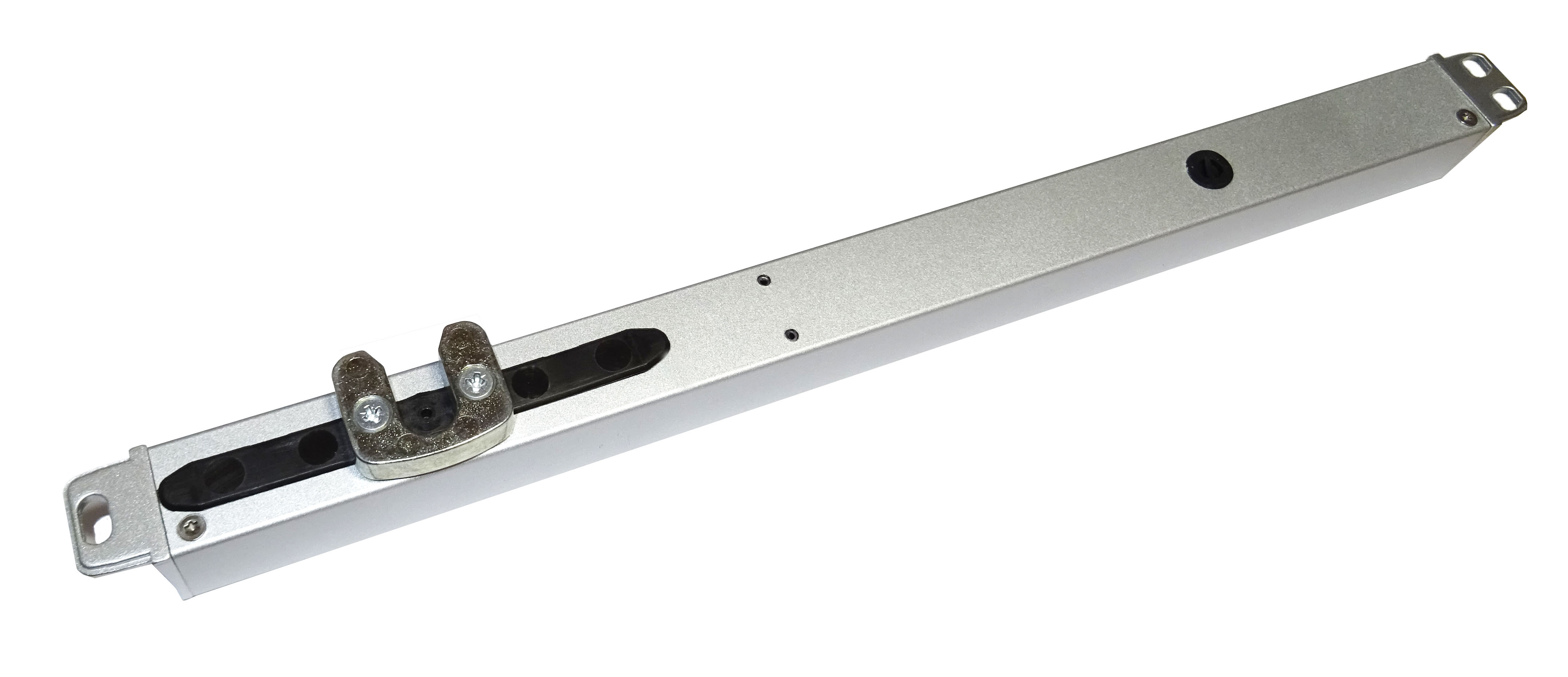

| B5 6222 | PA-ZV-LOCK-I | |
 Certifictate UKCA_PA-ZV-UNI_ZVK-LOCK_ZV-ELIMATIC | Declaration of conformity for locking device PA-ZV-UNI, ZVK-LOCK, ZV-ELIMATIC |
| Environmental Product Declaration (EPD) | Environmental Product Declaration (EPD) |
| Safety instructions and warranty conditions | Safety instructions and warranty conditions |
