| Part number | B5 6140 |
| Input voltage | 24 V DC |
| Nominal current | 1.1 |
| Switch on duration | 30 |
Product Information / Datasheet (PDF)

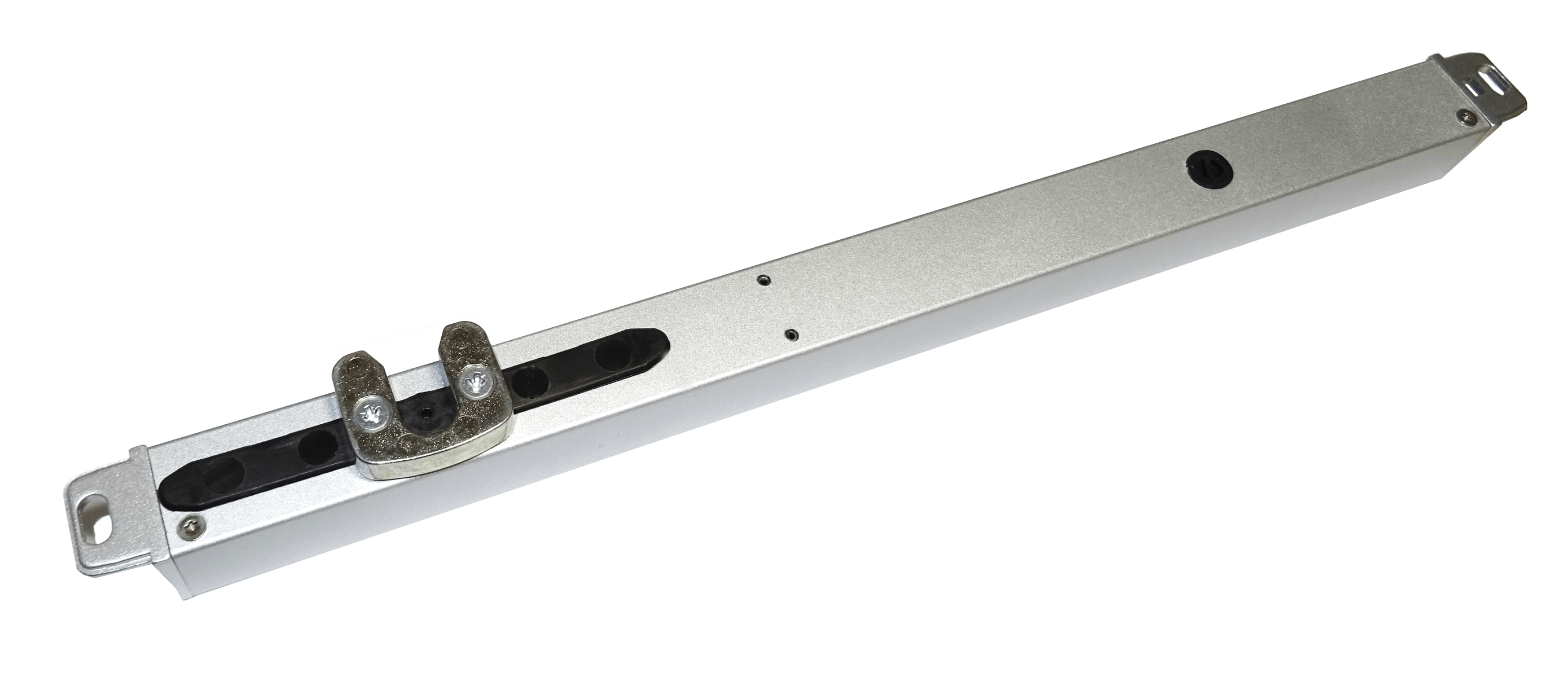

The ZVK-LOCK-I is an additional electrical locking device that actuates the locking belt of the window and independently controls the subsequent opener actuator. The locking system is mounted on the inside. The locking system can be used in SHEV and ventilation areas.
The work sequence control for the connected 24 V DC actuator technology with up to 6 amps total current is integrated in the ZVK-LOCK locking actuator. The working sequence controller enables the control of electromechanical actuators with potential-free feedback contact in a fixed sequence. This is necessary, for example, if the actuators are to open in a certain sequence and close again in the reverse sequence.
| Matchcode | ZVK-LOCK-I |
| Article name | Supplementary electric locking ZVK-LOCK-I |
| Part number | B5 6140 |
| Input voltage | 24 V DC |
| Output voltage | 24 V DC |
| Nominal current | 1.1 |
| Input voltage range | - 15 % / + 15 % |
| Ripple | 500 |
| Stroke | 18 / 36 |
| Nominal locking force | 300 |
| Cut-Off | built-in electronic overload cut-off Overload protection: electronic Max. switching current of follower actuators: 6 A |
| IP code | IP32 |
| Switch on duration | 30 |
| Mounting way | attached |
| Weight | 0.47 |
| Housing | Aluminium |
| Housing type | Aluminium |
| Housing length | 377 |
| Housing width | 26 |
| Housing height | 26 |
| Appliance class | III |
| Connection cable | 5-pin plug without connection cable |
| Nominal working temperature | 20 |
| Environment temperature range | -5 °C - +70 °C |
Supplementary Electric Locking ZVK-LOCK
24 V DC / 1.1 A
The locking actuator ZVK-LOCK is used for locking and unlocking windows with integrated locking stripe and for subsequent control of 24 V DC actuator technology. The locking actuator ZVK-LOCK enables an installation integrated
into the frame (with lock plate) as well as an installation mounted on the frame (with locking fork). Both brackets move the revolving locking stripe of the window via the roller pins optionally 18 mm or 36 mm (stroke setting via DIP switch 2) in OPEN or CLOSE direction (setting of driving direction CLOSE via DIP switch 1). The work sequence controller for the connected 24 V DC actuator technology with up to 6 amps total current is integrated in the locking actuator ZVK-LOCK. The connection is made via the customer‘s connection cable with a five-pin plug.
Technical Data:
Rated voltage: 24 V DC (- 15 % / + 15 %)
Ripple: max. 500 mV
Rated current: 1.1 A
Max. starting current: 1.2 A
Max. cut-off current: 1.1 A
Overload protection: electronic
Switching time sequence control: ca. 3 s
Max. switching current for all connected actuators: 6 A
Switch-on duration: 30% (ON: 3 min. / OFF: 7 min.)
Opening / locking time with stroke 18 mm: 4 s
Opening / locking time with stroke 18 mm: 7.2 s
Protection type: IP32 / IP10
Temperature range: 0°C to +70°C
Housing: Aluminium
Connection: 5-pin plug
Cut-off technology: integrated electronic overload cut-off
Dimensions (LxWxH): 377 x 26 x 26 mm
Weight: 0.47 kg
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Type: Supplementary electric locking ZVK-LOCK (-I / -A)
Article number: B5 6140 / B5 6141
WEEE Reg. No.: DE 97535049
