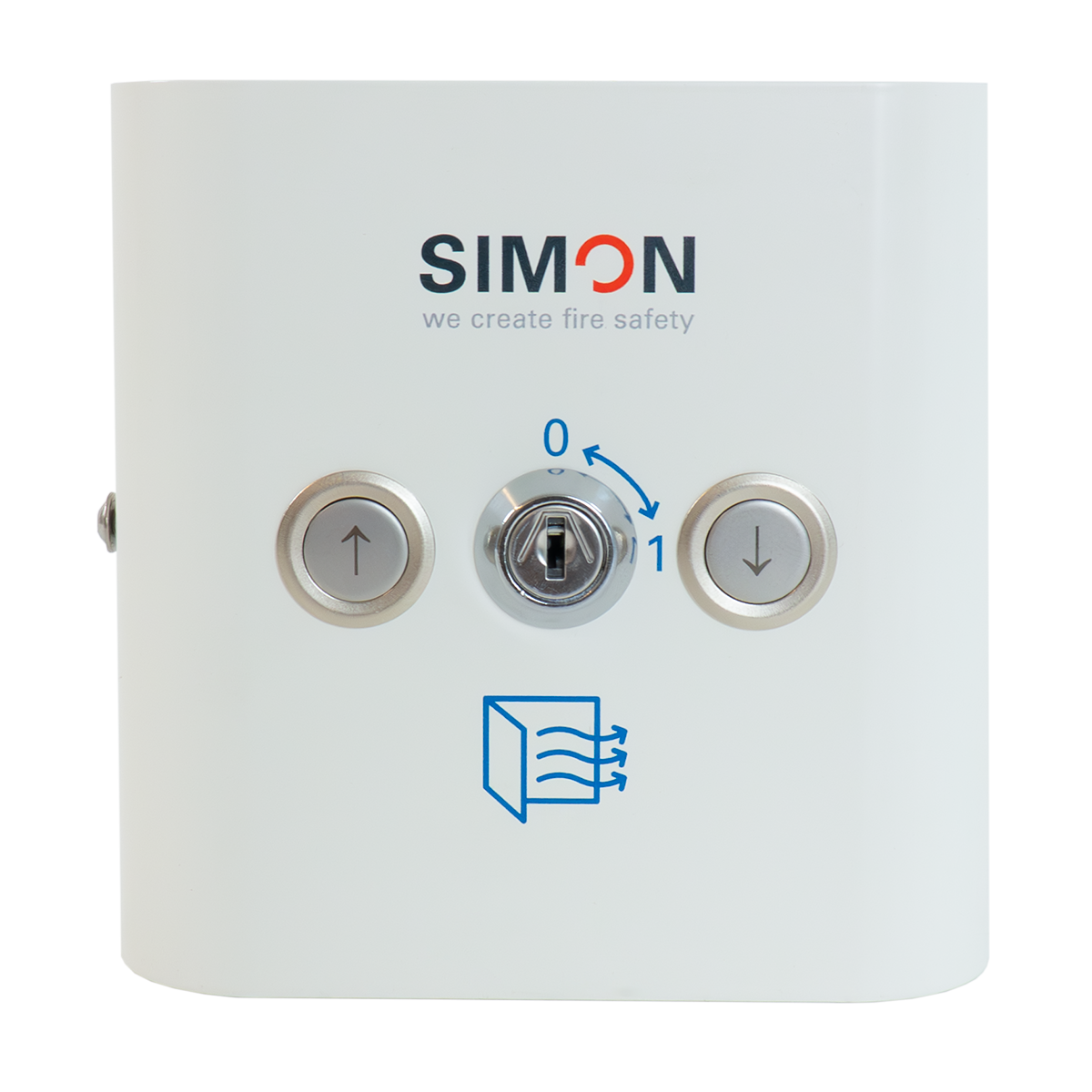

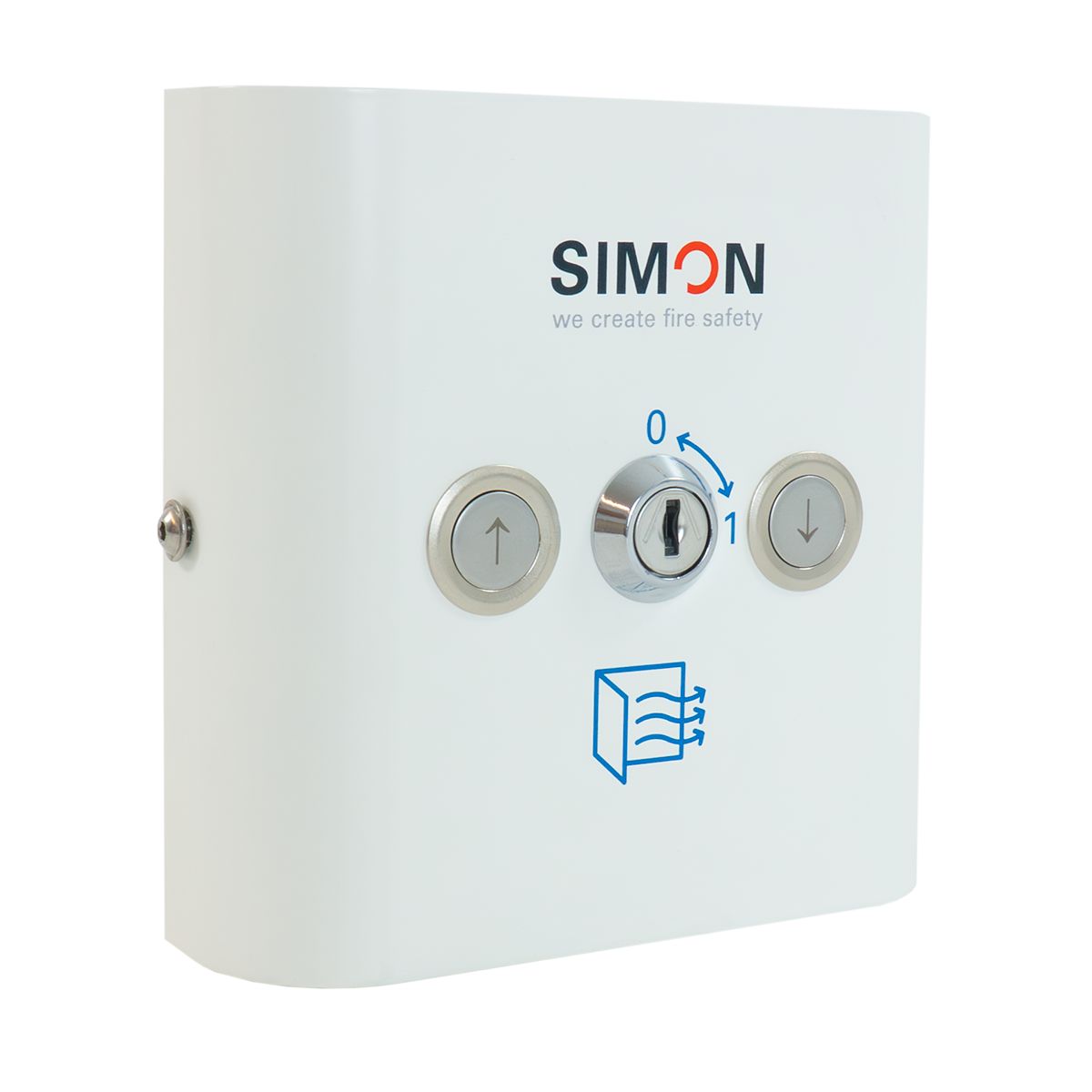

Service manual switch SBT-VENT
Open or close window actuators manually for natural ventilation with the service manual switch SBT-VENT.
The buttons UP / DOWN are lockable with a key switch.
| Matchcode | SBT-VENT-WEISS |
| Article name | SBT-VENT-WEISS |
| Part number | A3 2190 |
| IP code | IP40 |
| Weight | 0.42 |
| Housing | Steel case (powder coated) |
| Housing type | |
| Colour | RAL 9010 (white) |
| Housing length | 125 |
| Housing width | 125 |
| Housing height | 40 |
| Appliance class | III |
Service manual switch SBT-VENT
Control button for manually opening and closing window actuators for natural ventilation.
Label with ventilationsymbol, housing color RAL 9010

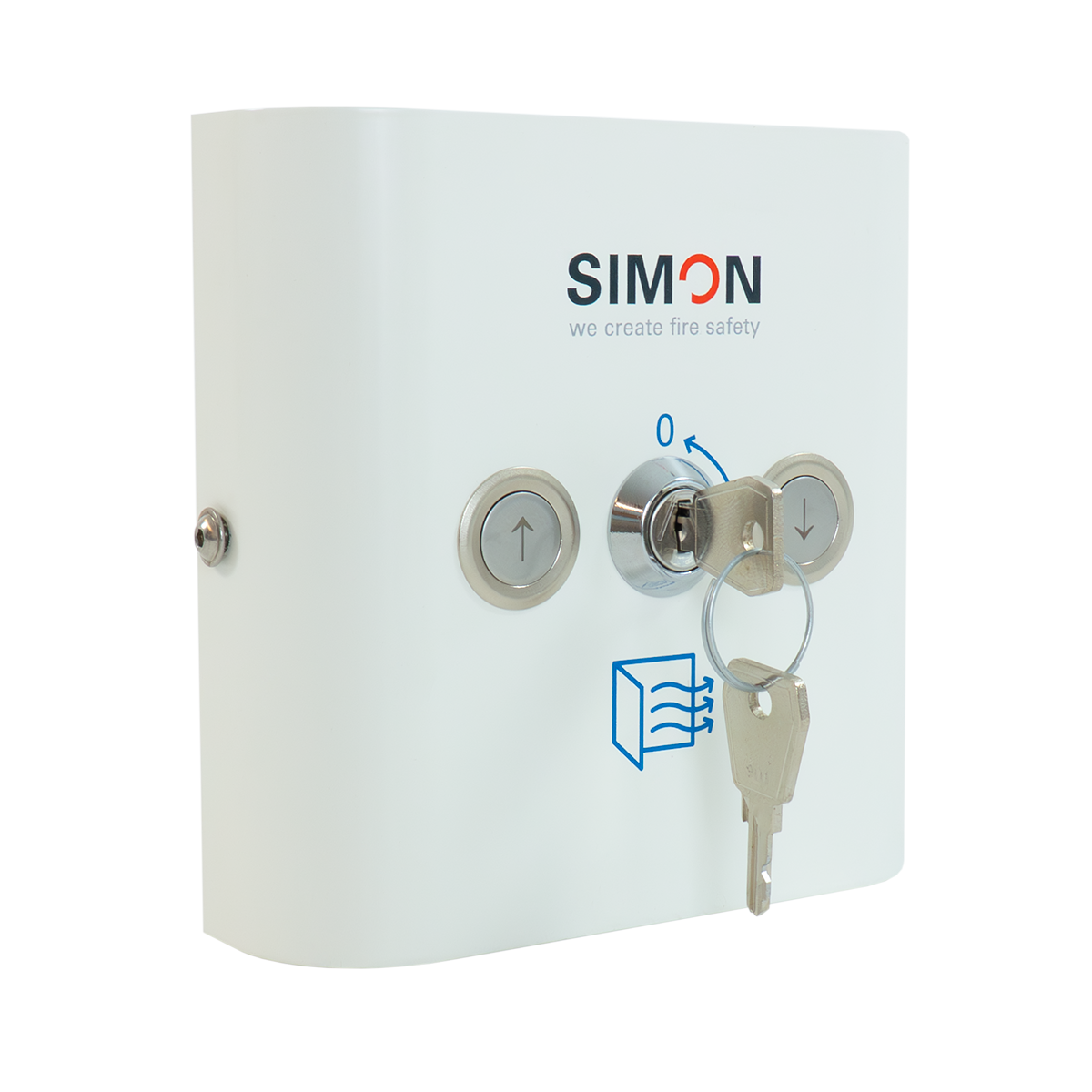

UP/DOWN control buttons with arrows, with key switch
Technical data:
Rated voltage range: 17.5 V DC to 28.2 V DC
Protection class: IP 40
Temperature range: -5°C - +60°C
Housing: Steel sheet (powder-coated)
Front plate: brushed stainless steel
Colors: white RAL 9010
Dimensions: 125 x 125 x 40 mm
Weight: 0.42 kg
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Type: Service manual switch SBT-VENT
Article number: A3 2190
WEEE Reg. No.: DE 97535049
