| Part number | ST4 4031 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 6 |
| Ventilation groups | 1 |
Product Information / Datasheet (PDF)

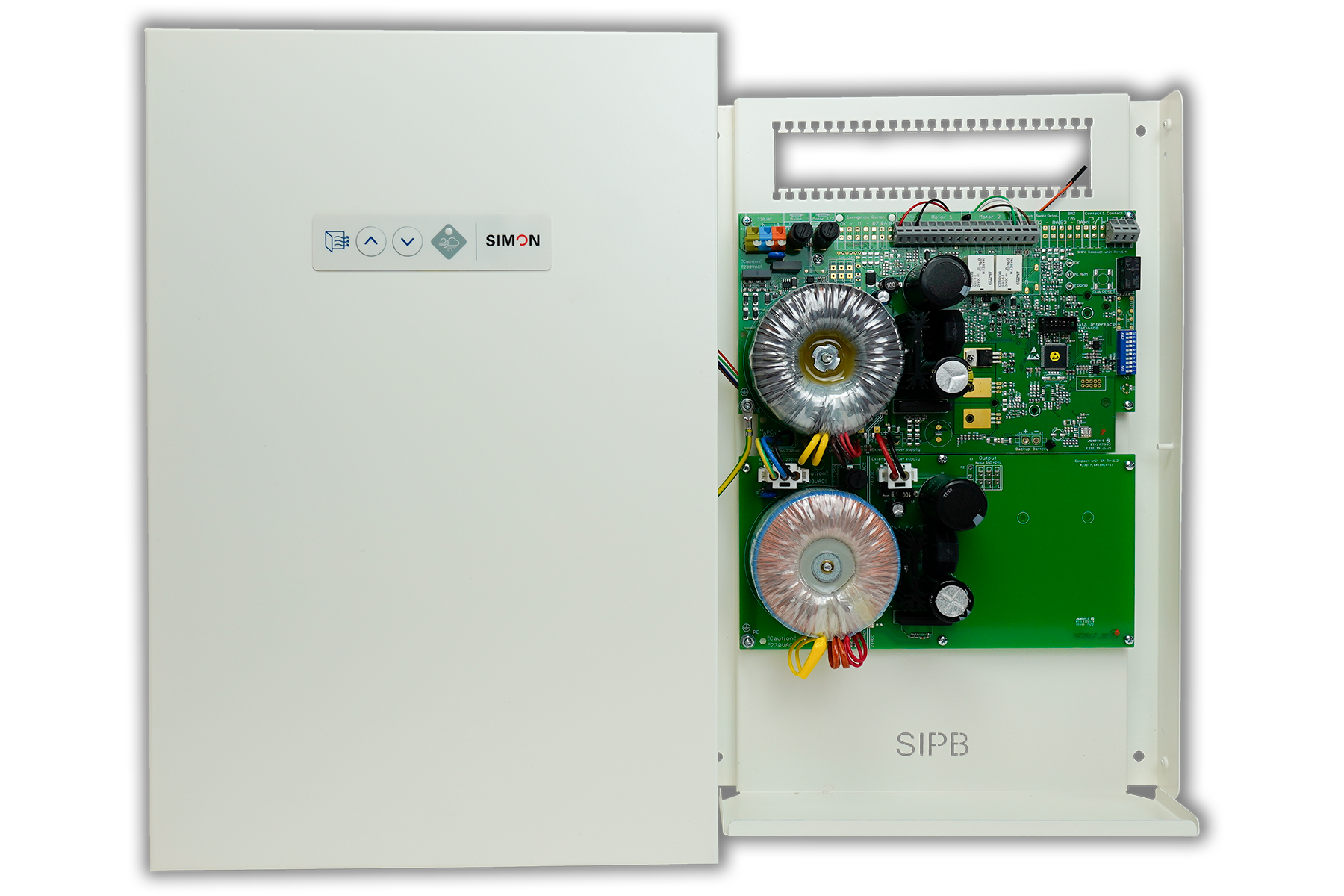

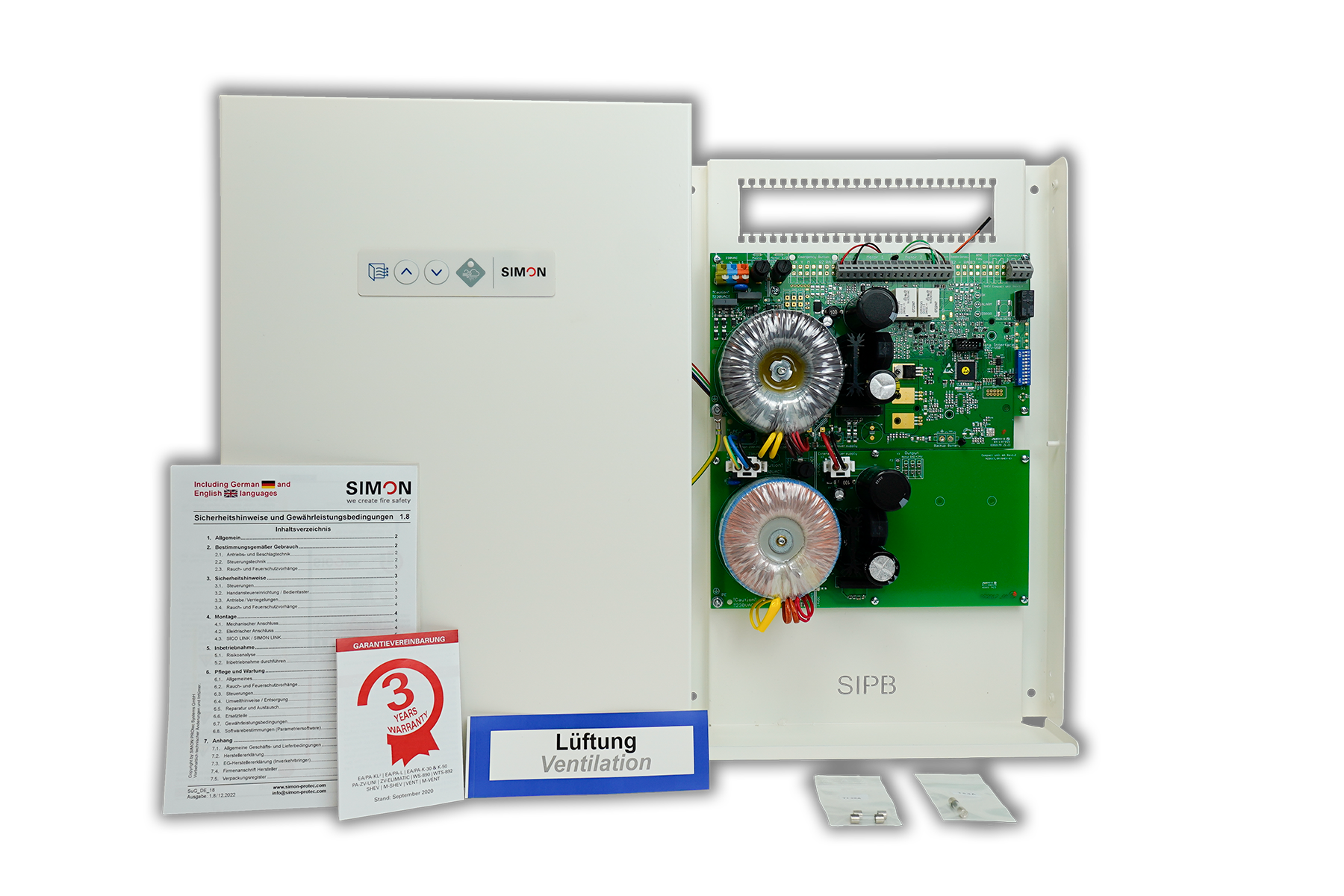

The electric ventilation control VENT-6 is a compact unit in a metal housing. It contains the power supply and the entire control and regulation electronics for operating 24 V DC actuators. The VENT-6 controls the connected actuators for daily aeration and ventilation.
The VENT-6 can be operated without accessories via the membrane keyboard integrated in the lid. In addition, it is possible to connect an external ventilation button and a thermostat with the help of a THM-200 (not included). By connecting a rain or wind/rain detector the VENT-6 reacts automatically to adverse environmental influences. The following functions can be set via the DIP switches on the board: continous drive after tap on the ventilation button, dead man function, adjustable stroke limitation and automatic ventilation CLOSED.
The SIMON LINK parameterization and diagnostic software allows product-specific settings to be changed and maintenance and diagnostic work to be performed. Connected via Plug & Play, the software accesses the device immediately. Changes to device settings, maintenance or diagnostic work can be carried out directly on site without loss of time.
Advantages at a glance:
| Matchcode | VENT-6 |
| Article name | VENT-6 ventilation control unit |
| Part number | ST4 4031 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 6 |
| IP code | IP20 |
| Switch on duration | 30 |
| Ventilation groups | 1 |
| Housing | sheet steel housing |
| Housing type | |
| Colour | RAL 9010 |
| Housing width | 301 |
| Housing height | 444 |
| Housing depth | 85 |
| Appliance class | I |
| Environment temperature range | -5 °C - 40 °C |
Ventilation control panel VENT-6
230 V AC / 24 V DC / 6 A
The electric ventilation control VENT-6 is a compact unit in a metal housing with membrane keypad OPEN/CLOSE. It contains the power supply and the entire control and regulation electronics for operating 24 V DC actuators. The VENT-6 controls the connected actuators for daily aeration and ventilation.
Technical data:
Input voltage: 230 V AC
Output voltage: 24 V DC
Output current: 6 A
Monitoring: continuous and short-term operation
Protection class:: IP20
Temperature range: -5°C - +40°C
Ventilation groups: 1
Housing: sheet steel case, coated
Color: RAL 9010
Dimensions (WxHxD): 301 x 444 x 85 mm
Weight: 6.30 kg
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Typ: Ventilation control panel VENT-6
Article number: ST4 4031
WEEE Reg. No.: DE 97535049
