| Part number | ST4 3386 |
| Input voltage | 24 V DC |
| Output voltage | 24 V DC |
| SHE Groups | 1 |
Product Information / Datasheet (PDF)

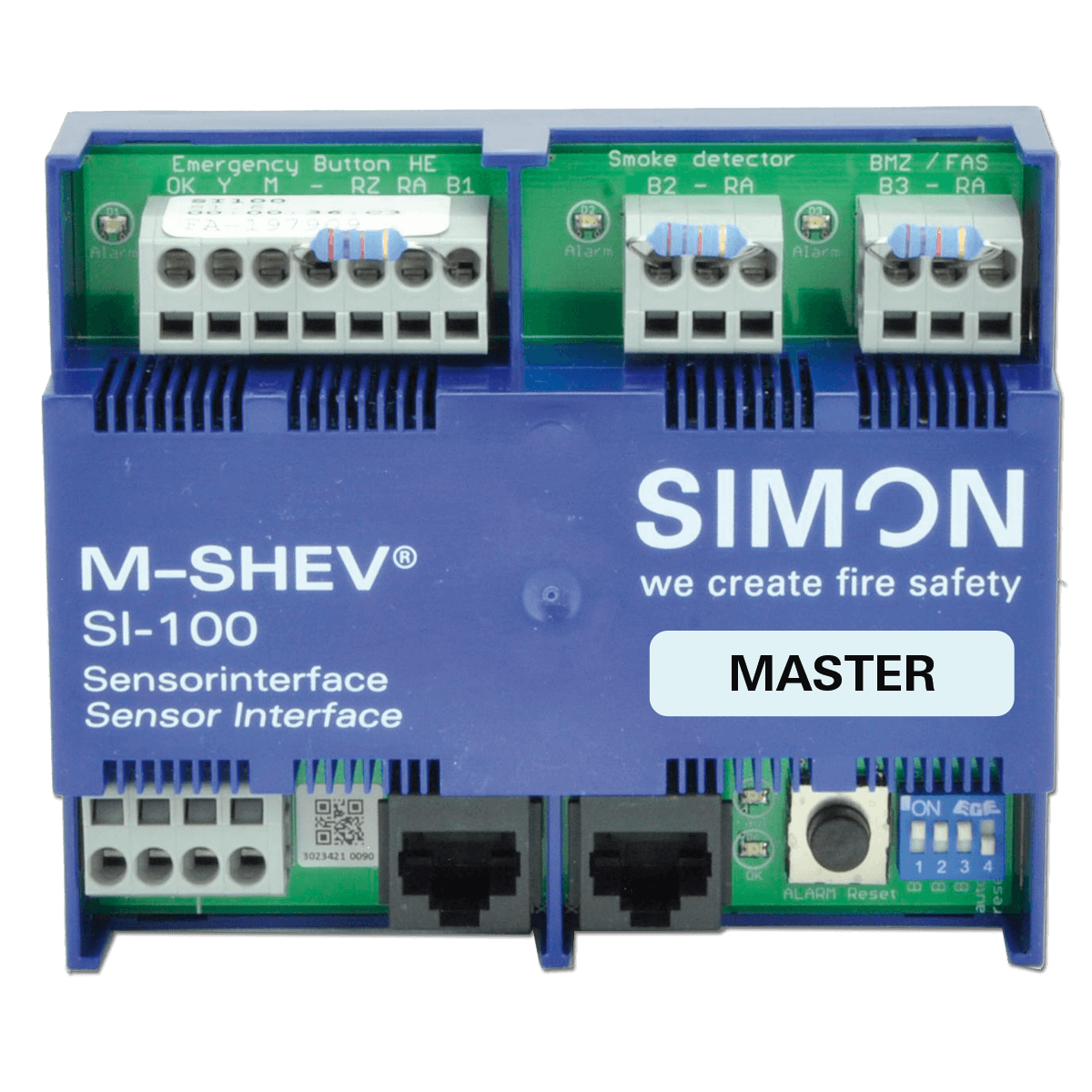

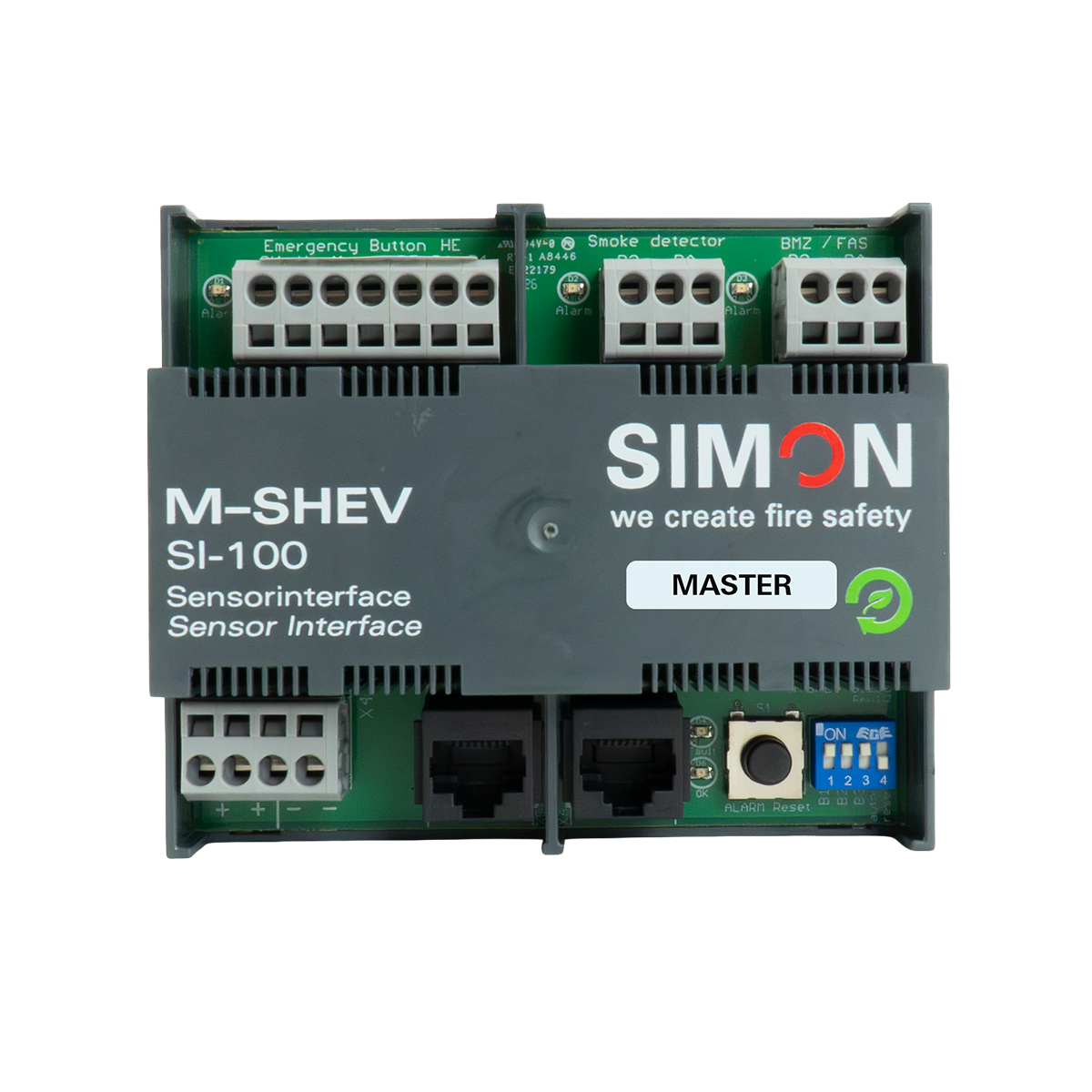

The sensor interface SI-100-MASTER is one of the basic modules for the M-SHEV module center. It is connected to the other modules via BUS and serves as the higher-level control of all assigned SHE groups.
The module is integrated in the M-SHEV module center (SHE control center with a modular structure). It is located in the three other components central interface, motor relay and power supply as well as the optional signaling interface in a secure sheet steel housing.
The SI-100 MASTER has the highest priority of all assigned SHE groups. The attached fire service control button (FBT) can open and close windows and flaps despite pressing alarms. Thus, the controller is responsible in case of fire after the arrival of the fire brigade its mission leader.
| Matchcode | SI-100-MASTER |
| Article name | Sensor interface SI-100-MASTER |
| Part number | ST4 3386 |
| Input voltage | 24 V DC |
| Output voltage | 24 V DC |
| SHE Groups | 1 |
| Weight | 0.248 |
| Housing type | |
| Appliance class | I |
| Nominal working temperature | 20 |
| Environment temperature range | -5 °C - 40 °C |
Sensor interface SI-100-MASTER (connection for fire brigade control buttons)
The SI-100 MASTER has the highest priority of all assigned SHEV groups. The attached fire service control button (FBT) can open and close windows and flaps despite pressing alarms. Thus, the controller is responsible in case of fire after the arrival of the fire brigade its mission leader.Responsible for the management of a SHEV group. Provides standby current monitored detection lines for manual release pushbuttons (SHEV pushbuttons - max. 8 pieces), smoke detectors/thermo detectors and fire alarm system. Reset button and fault indicators. Individually parameterizable, group assignment and diagnostics via SimonLink software (e.g. FACP auto-reset and priority switching of the detection lines).
Manufacturer:
SIMON PROtec Systems GmbH
Type: Sensorinterface SI-100-Master
Artikelnummer: ST4 3386
