Modular Control Units

The M-SHEV (Modular Smoke and Heat Exhaust Ventilation) modular control panel is an electrical control device for SHEV and ventilation operation with BUS technology for the connection of electrically operated opening units. The M-SHEV control unit is supplied in a sheet steel housing and contains power supply, emergency power supply and the entire control and regulation electronics for operating 24 V DC actuators for building openings, e.g. windows and smoke exhaust flaps. The M-SHEV modular control panel controls actuators both in case of fire and for daily ventilation. In the event of a power failure, the emergency power supply ensures the function of the SHEV system for at least 72 hours. The M-SHEV modular control panel provides all necessary connections for release devices (manual control unit, smoke detector, fire alarm system). In addition, appropriate components can be connected for daily ventilation applications, e.g. wind/rain detectors and vent buttons. The ventilation function is at the same time a daily function check of the SHEV system. The M-SHEV modular control panel is CE certified according to EN 12101-10.

The M-VENT ventilation control panel is a modular electrical control unit for ventilation operation with BUS technology. It allows the connection of electrically operated opening units in 24 V DC and 230 V AC. The respective ventilation groups can be flexibly designed and controlled.

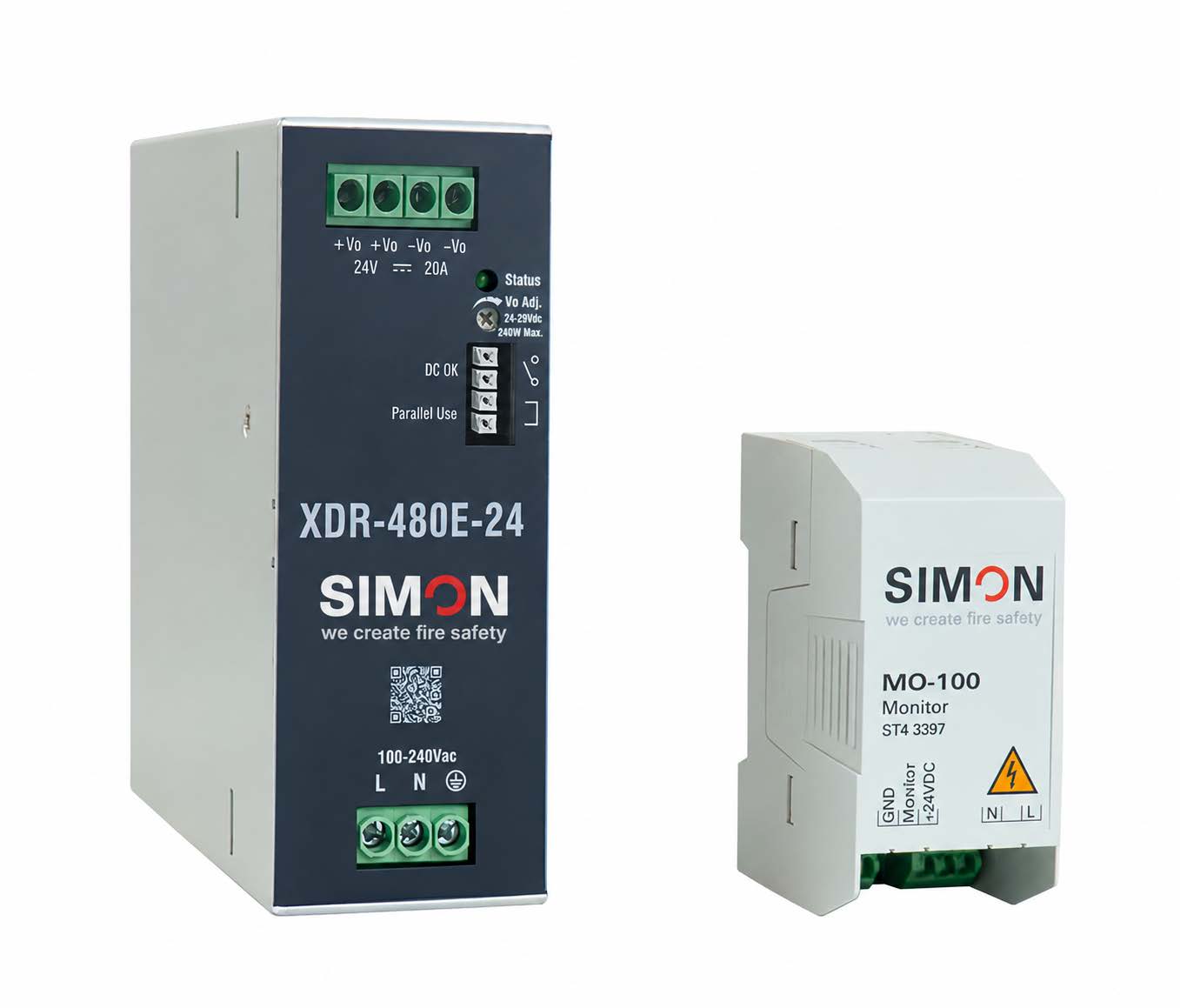

For M-SHEV and M-VENT, all modules have a "flat" design to facilitate installation. Each module has the same size. For power supply, the individual modules are connected to the central 24 V DC power supply and connected to the internal BUS via network cable with RJ45 plug. Each module has different LED displays for alarm, OK and fault. Using the SimonLink parameterization software, the modules can be individually named (e.g. Hall 1, Hall 2, ...) and identified at the push of a button via an optical display.
